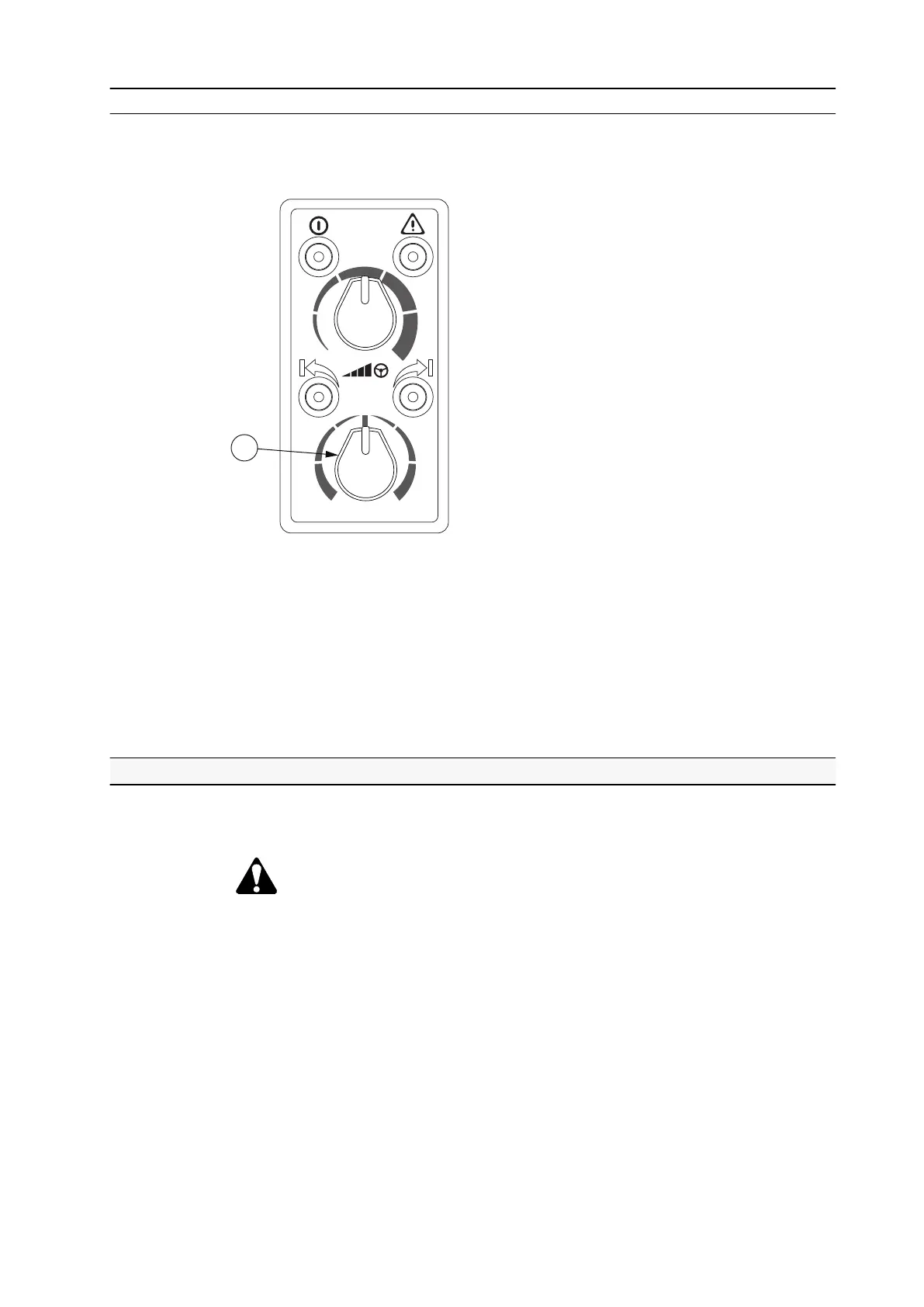

3.17.2.4 Adjusting the offset pivot
By adjusting the offset pivot you can manually turn the Valtra LHLink without
turning the front wheels.
GUID-9AEB039B-C25E-490F-8D97-474DDAC31779
1. Offset pivot controller
• To turn the Valtra LHLink to left, rotate the offset pivot controller leftwards.
• To turn the Valtra LHLink to centre position, rotate the offset pivot controller
to middle position.
• To turn the Valtra LHLink to right, rotate the offset pivot controller rightwards.
3.17.3 Setting lifting link positions
You can set the lifting links to different positions mechanically by changing the
positions of the fastening bolts.
CAUTION: When driving on public roads, with or without an
implement, always centre and lift the pivoting front linkage fully up.
IMPORTANT: When using the front loader, the pivoting front linkage lifting links
must be centred and folded to the transport position.
3. Operation
- 257 -
