Valtra Versu N174 V

2. Remove the screw and washer.
3. Push the locking plate forward and pull to the side to remove it.
4. Remove the locking pins by pulling.
Support the pick-up hitch implement by hand while removing the locking pins.
5. Pull the implement out.
6. Attach the pick–up hitch implement.
7. Fit the locking pins.
8. Fit the locking plate and pull backwards into place.
9. Fit the screw and washer.
Tightening torque is 23 Nm.
3.24.5.2 Changing the Hydraulic pick-up hitch implement
You can change the Hydraulic pick-up hitch implement. When the trailer hitch or
drawbar is not in use, you can fasten it to the bracket on the rear side.
2
1

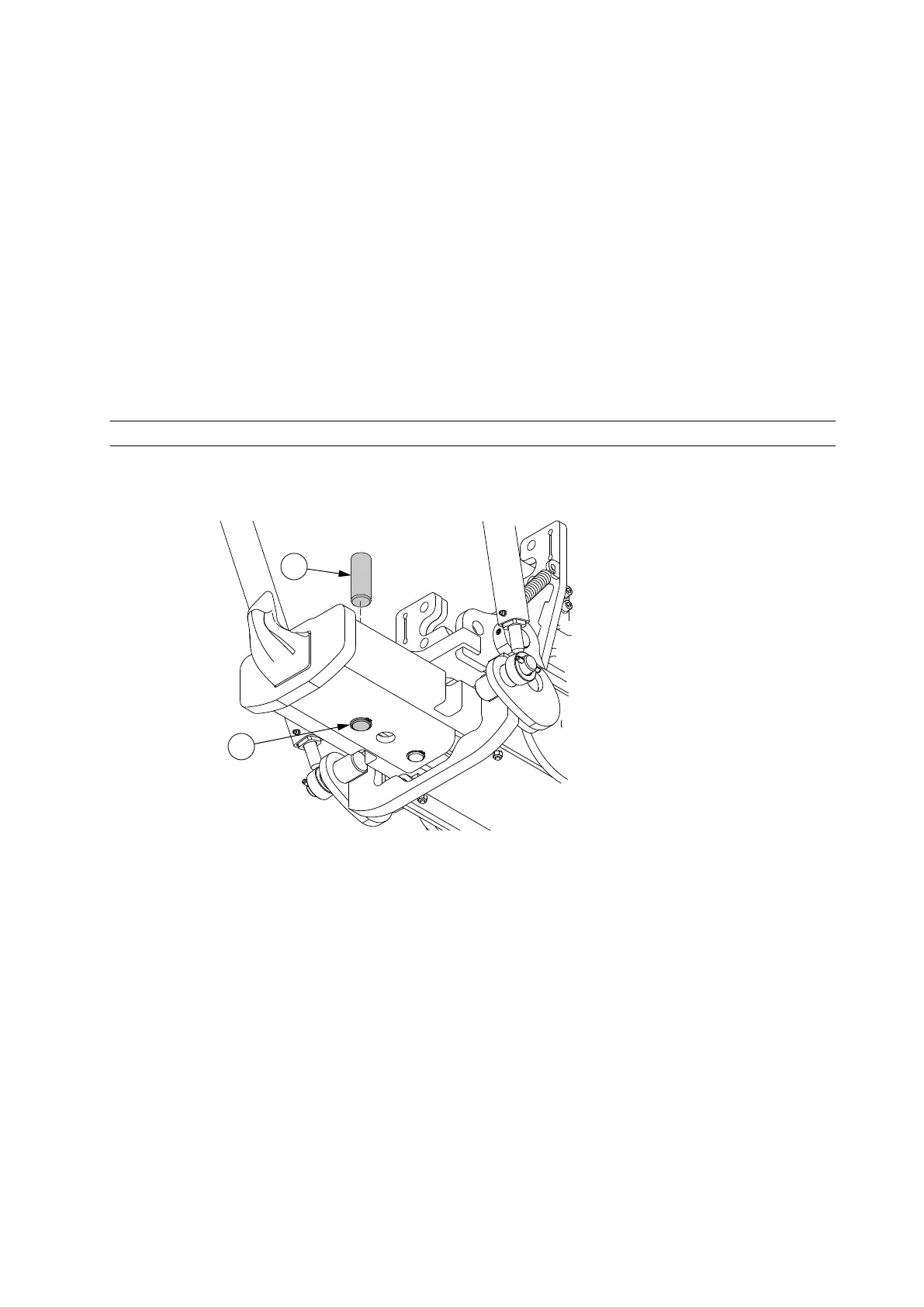

GUID-C5A77E24-A630-4327-923E-945C6CA1CAF0
1. Locking pin
2. Locking ring
1. Lower down and extend the towing device.
2. Raise the towing device to the locking position.
3. Remove the locking ring.
4. Remove the locking pin by pulling.
Support the pick-up hitch implement while removing the locking pin.
5. Pull out the pick-up hitch implement.
6. Attach the pick-up hitch implement.
7. Attach the locking ring.
