4.7.2.3 Cleaning radiators
Clean all the radiator honeycombs periodically.

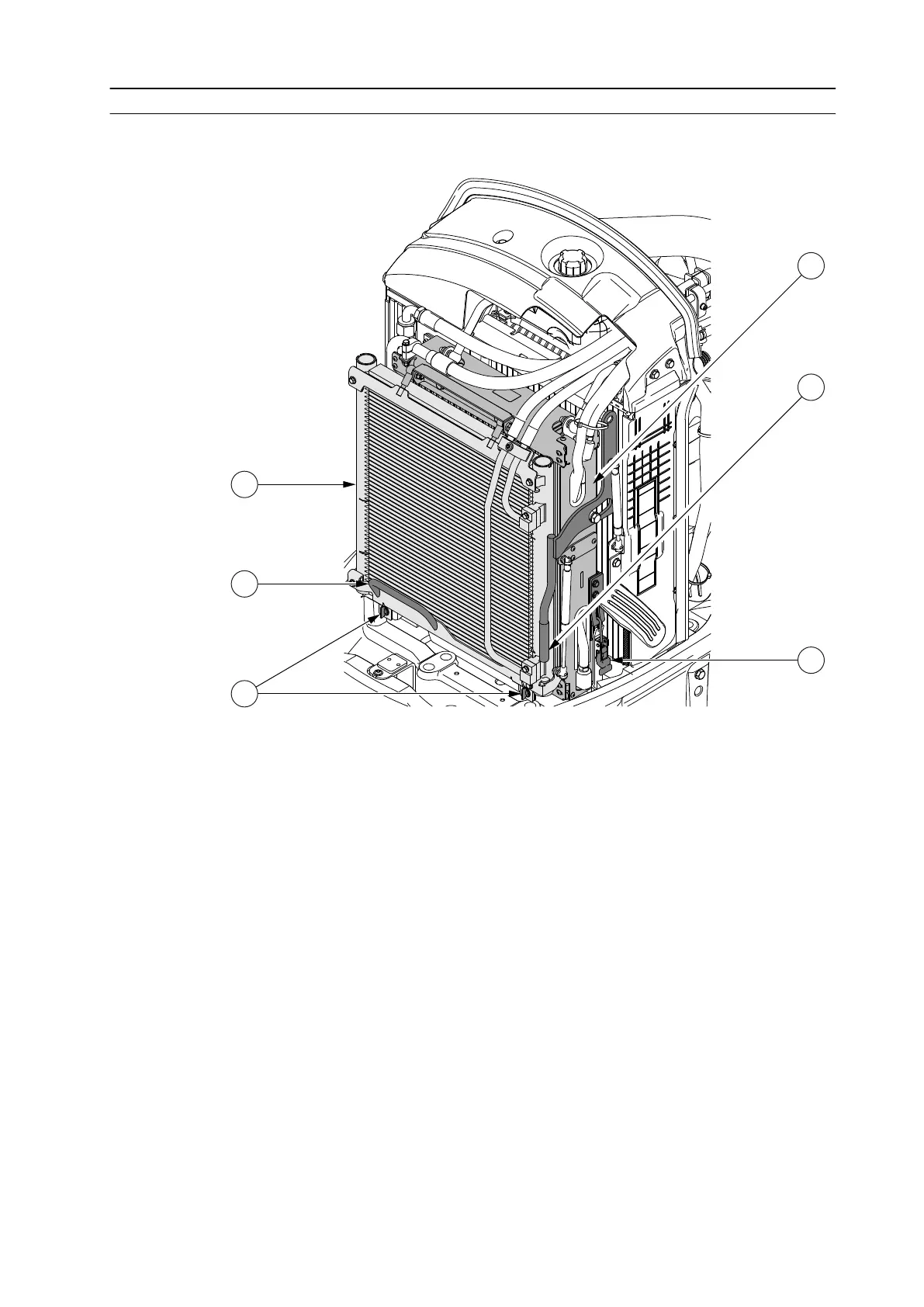

GUID-5C33245B-720B-4DDB-B544-67FE01080897
1. Transmission oil cooler
2. Transmission oil cooler handle
3. Air conditioning cooler (extra equipment)
4. Air conditioning cooler handle
5. Transmission oil cooler latch
6. Air condition cooler fastening screw
Fuel cooling is integrated into the transmission oil cooler.
1. Open the engine cover.
2. Lift the transmission oil cooler to the upper position.
Hold the transmission oil cooler handle and release the transmission oil
cooler latch. Prevent the transmission oil cooler from rising and turn the latch
aside. The transmission oil cooler rises to the upper position.
3. Lift the air conditioning cooler (extra equipment) to the upper position.
The air condition cooler is fastened with two screws.
4. Maintenance
