3.15.1.6 Using the auxiliary hydraulics on/off valves
By default, the tractor is equipped with one auxiliary hydraulics on/off valve. This
standard on/off valve controls the lowest quick couplings at the rear. You can use
the standard rear on/off valve to control the hydraulic top link, for example.
The rear on/off valve 2 is optional. The implement is attached permanently to this
valve. You can use the rear on/off valve 2 to control the hydraulic levelling link or
hydraulic pick-up hitch extension, for example.
You can control the on/off valves by rocker switches.
• The switches are active even if the auxiliary hydraulics is not activated.
• The switches have two positions and are spring-returned.
CAUTION: In the spring-returned position, both ports are connected
directly to the tank. This must be noticed when attaching implements
to the valve.
GUID-D721C290-0FFA-41CD-A739-E5CE7B089D20

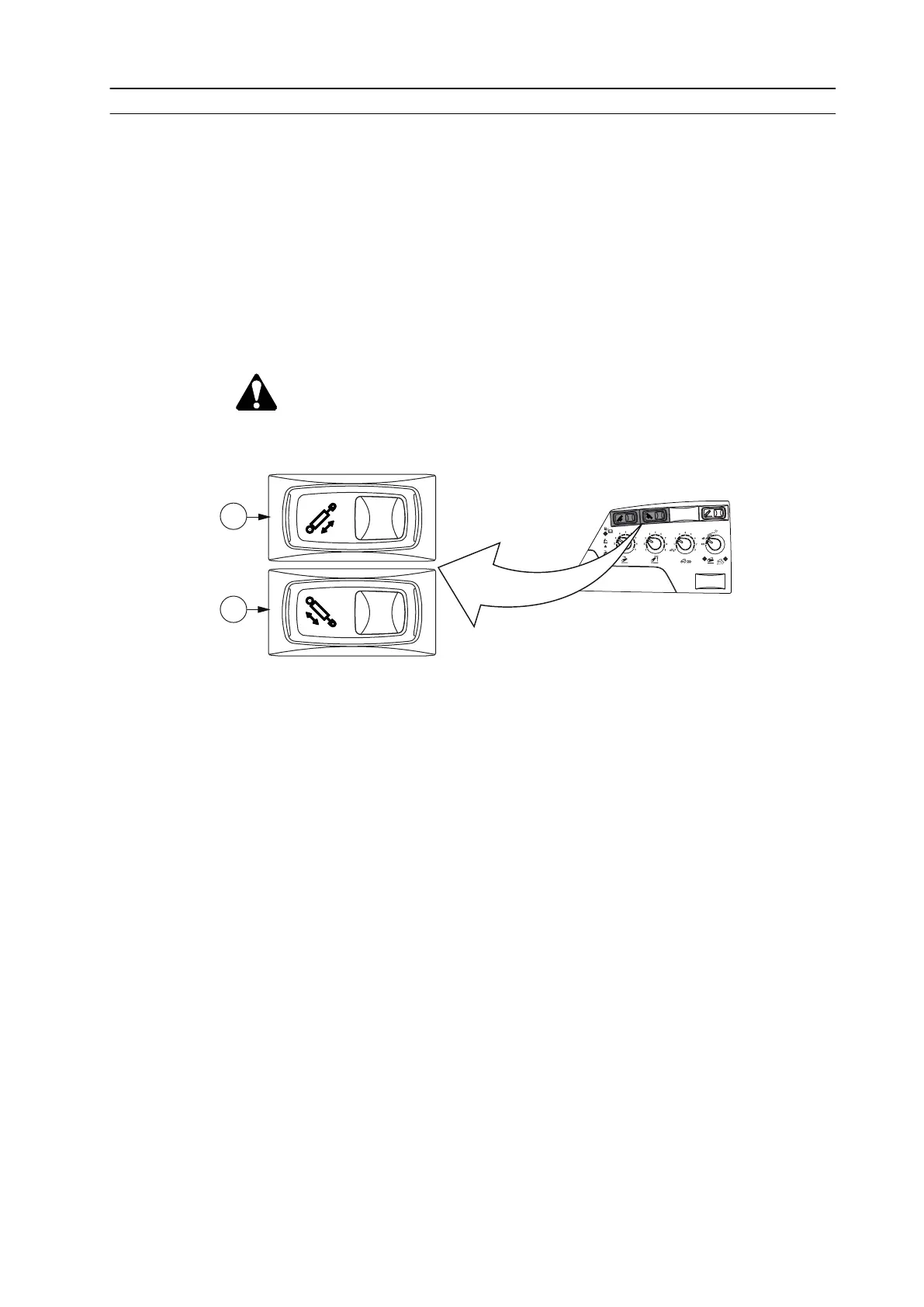

1. Switch for rear on/off valve 1
2. Switch for rear on/off valve 2 (optional)
1. Press down the symbol side of the switch to use the lowering function (-).
3. Operation
- 237 -
