1. Activation / recording button 1 for U-Pilot
2. Activation / recording button 2 for U-Pilot
3. U-Pilot on/off button

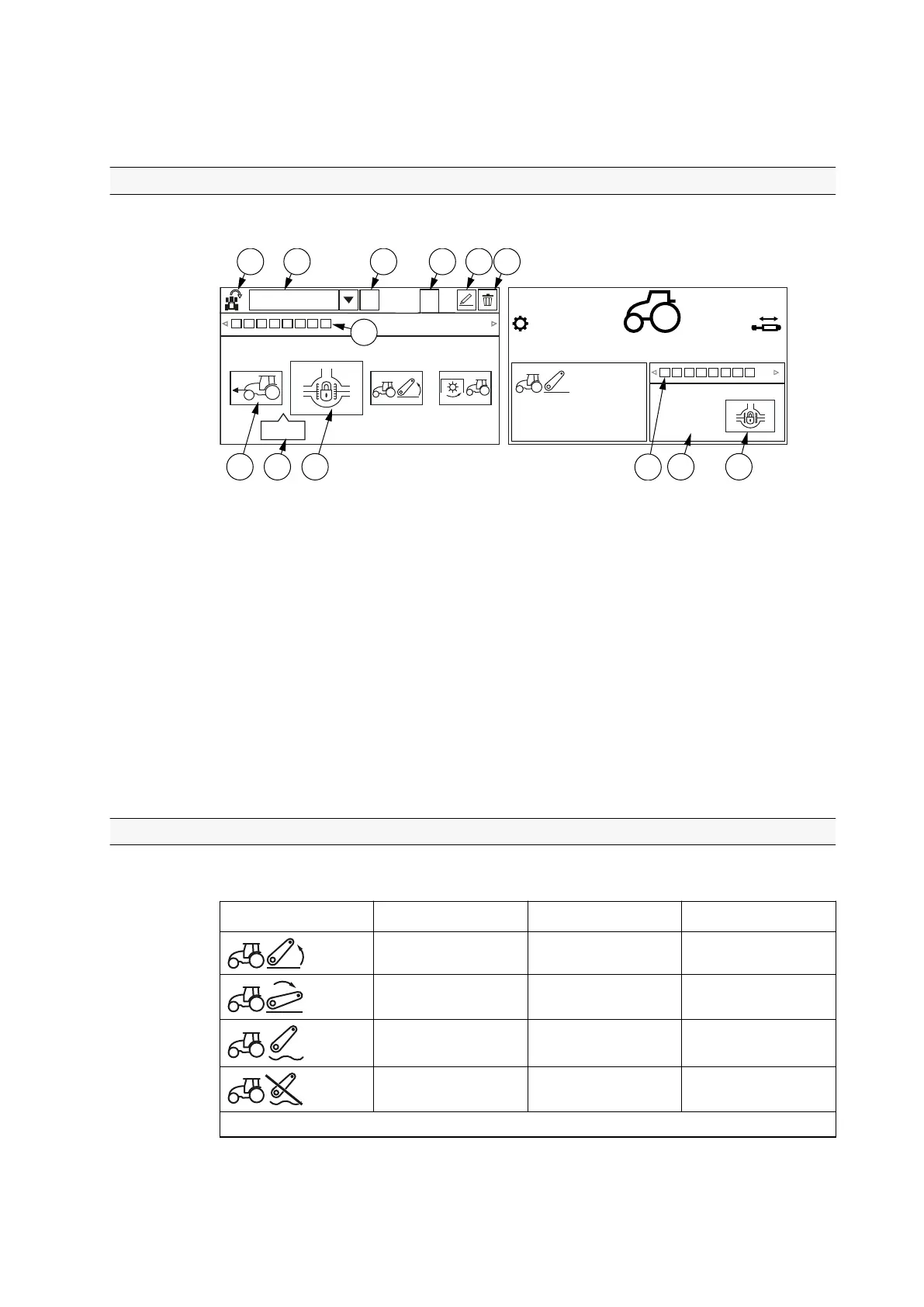

3.20.3 U-Pilot view
The U-Pilot view is shown on the tractor terminal display.
1
IMPL1
ABC
1 2
0,5m
2 3 5 64
8 9
7
7
10
P
%
15
B
0.0
0.5
m
1
9 10
1
GUID-0417221F-90E5-4ED4-8F46-CC22CE0CAB61
1. U-Pilot status
2. Selected programme
3. Renaming symbol
4. Selected memory slot
5. Edit mode symbol
6. Delete symbol
7. Programme steps
8. Previous operation
9. Distance to the next operation
10. Next/ongoing operation
The U-Pilot view appears on the tractor terminal display automatically when the
U-Pilot is activated. The view can be changed to any other view. U-Pilot
operations can be followed also in the split drive view.
3.20.4 U-Pilot view symbols
U-Pilot operations are indicated with symbols.
Symbol
Operation Switch positions when
running a programme
Limitation
Rear linkage up. Lift/stop/lower switch in
stop or lower position.
1), 2)
Rear linkage down. Lift/stop/lower switch in
stop or lower position.
1), 2)
Position control knob
override activated.
Position control knob
override deactivated.
Table continued on next page
3. Operation
- 281 -
To Next Page
