Valtra Versu N174 V

3.16.2 Using the front linkage connected to the rear valves
IMPORTANT: You have to detach the front loader before using the front linkage.
1
AUTO
CONTROL
2
OFF
ON
OFF
1
2
3
4
2
5
6
7
8
1
GUID-AABBE8A9-DCB7-492F-B436-1326EE03159F

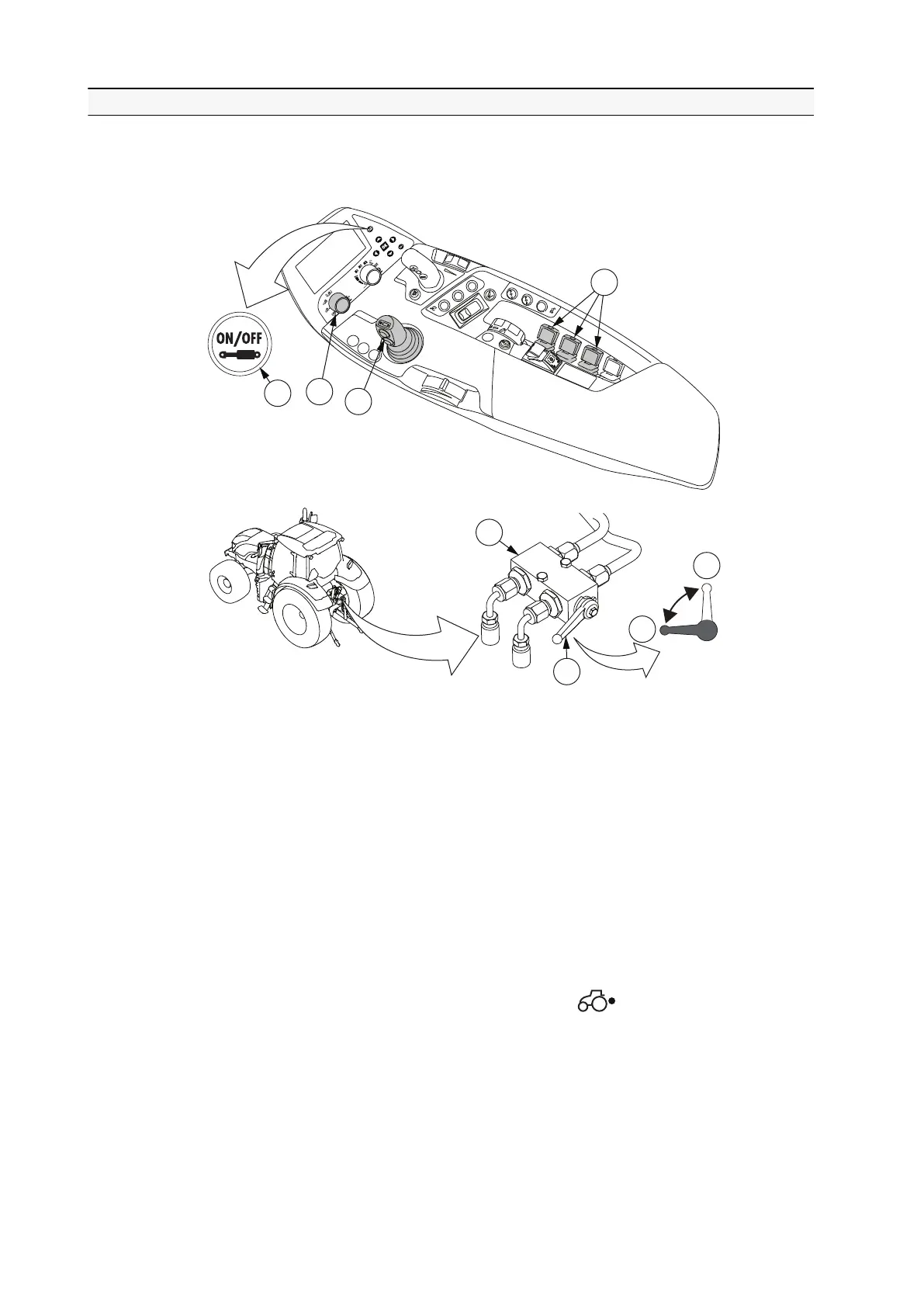

1. Control lever for auxiliary hydraulics rear valve
2. Auxiliary hydraulics on/off push button
3. Joystick functions selector
4. Joystick
5. Shut-off valve
6. Shut-off valve lever
7. Lever in front linkage position
8. Lever in rear valve position
• Activate the auxiliary hydraulics by pressing the on/off push button.
The on/off symbol on the push button is lit green.
• Turn the joystick functions selector to position
.
3. Operation
- 250 -
