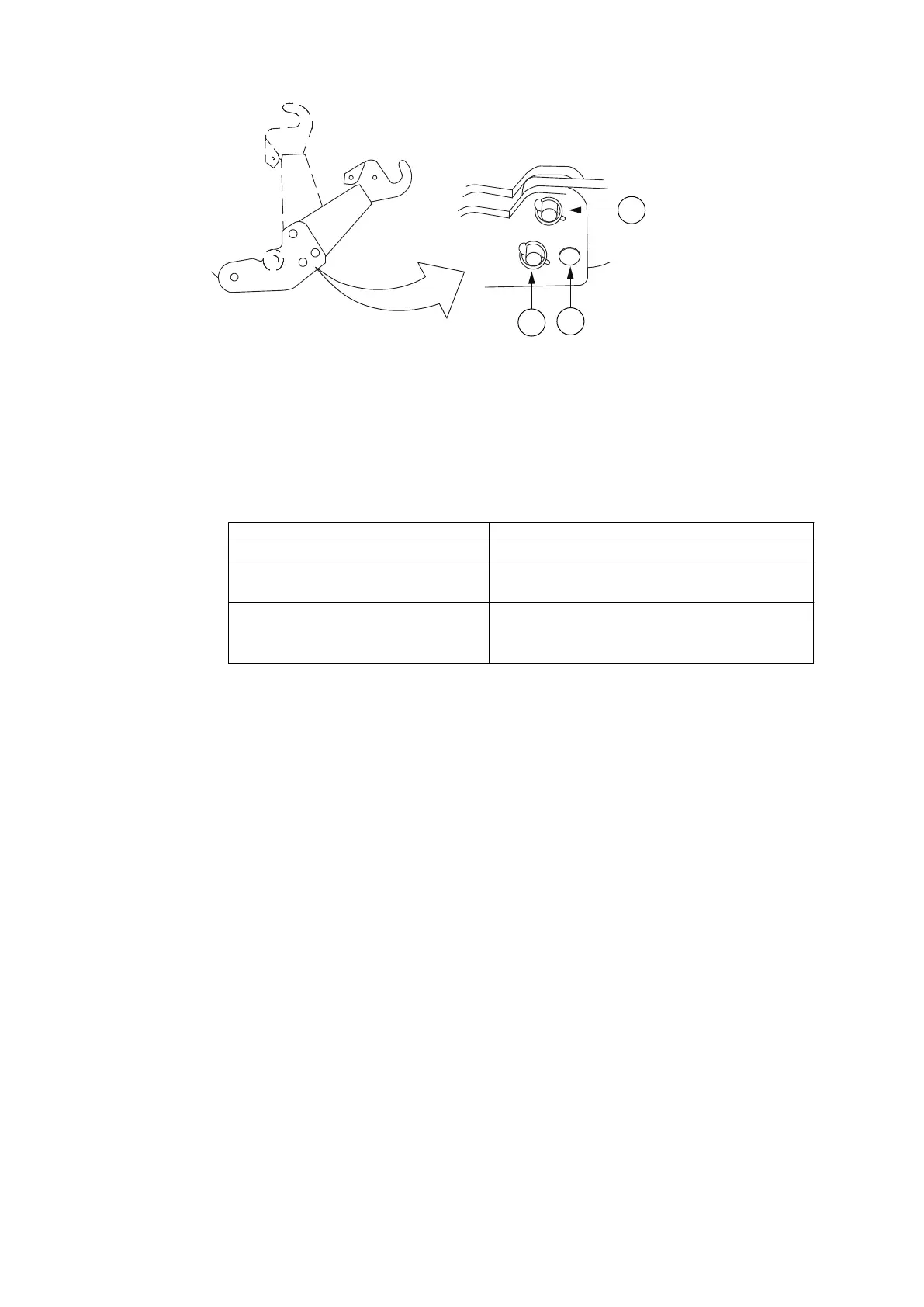

1. Fastening hole 1
2. Fastening hole 2
3. Fastening hole 3
1. Set the lifting links to the desired position and fit the fastening bolts to the
holes.
Lifting link position
Fastening bolt location
Working Fastening bolts are fitted in holes 1 and 2 or 1 and 3.
Transport Lifting links are folded fully up and fastening bolts are
fitted in holes 1 and 3.
Floating Fastening bolt is fitted in hole 1 only.
NOTE: When using the mechanical floating position, the
maximum load on the ball hitch couplers is 25 kN.
2. Secure the fastening bolts with locking pins.
3. When you drive on public roads and there is an implement on the front
linkage covering the headlights, switch the upper headlights on (optional
equipment).
