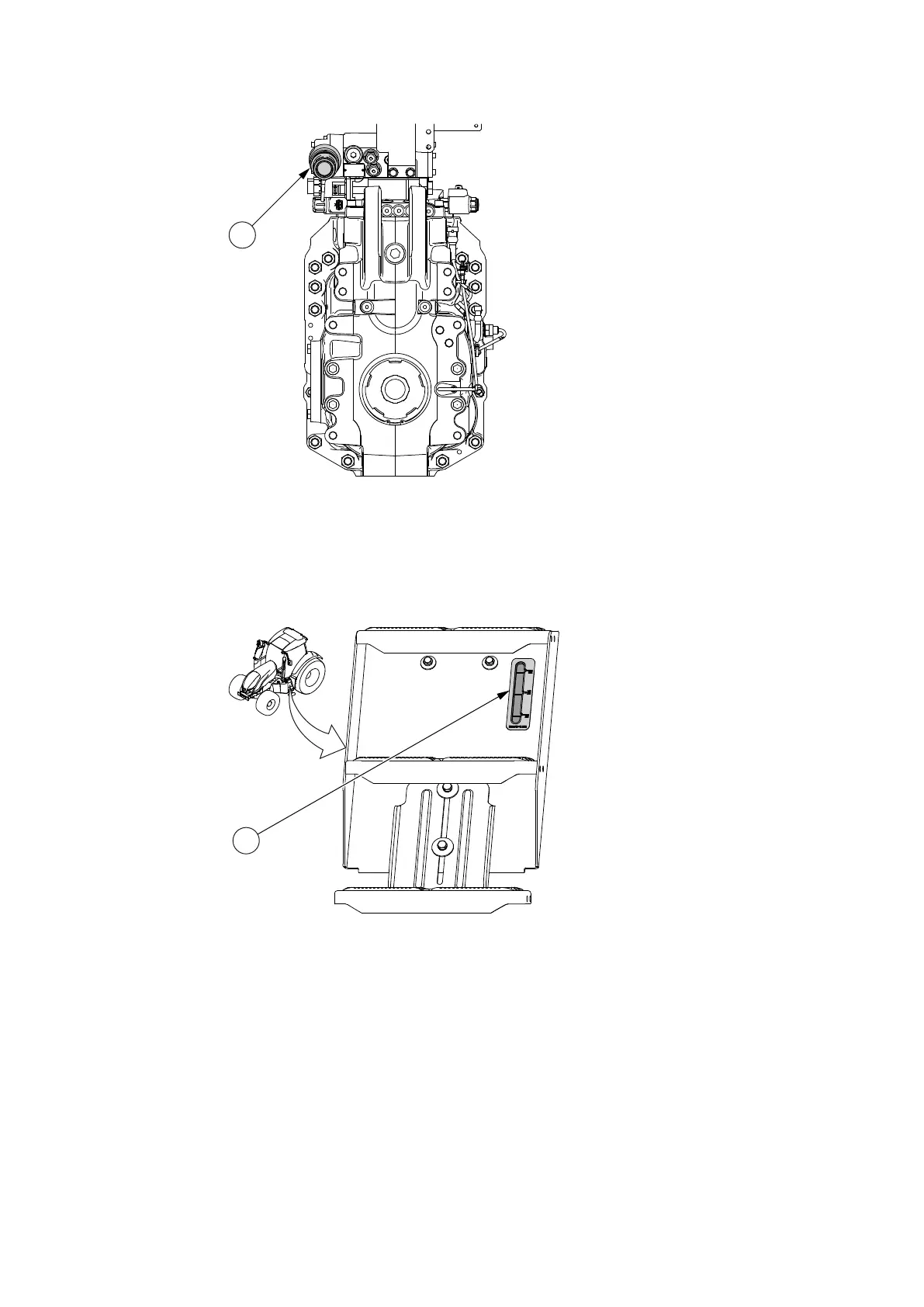

6. Refill by pump through the hydraulic return coupling.
GUID-93D0D119-C361-4CA1-A851-847F9A21FDDB
1. Hydraulic return coupling
The oil must go through the return filter so that no impurities enter the
system.
7. Check the oil level from the oil level gauge.
GUID-CFD0C577-BE48-4BAB-B7A1-BC4FA51D82CC
1. Hydraulic oil level gauge
Make sure that after refilling, the oil level is between the minimum and
maximum marks.
8. Start the engine and check the oil level.
4. Maintenance
- 404 -
