30-44 Overview D20x22 Series II Navigator HDD

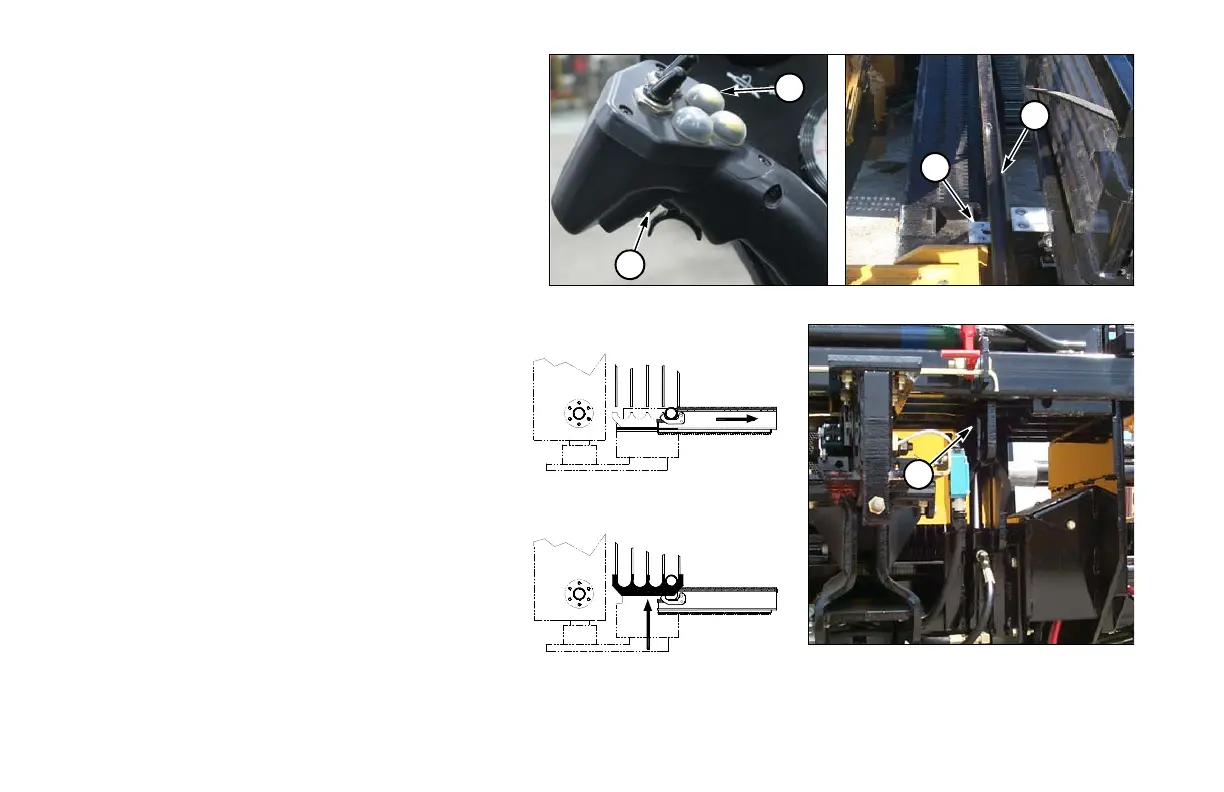

Step 15: Press Rod Transfer Arm Retract Button (9) to
move rod transfer arm (7) away from drill
string to position rod (8) under rod box
column to be loaded.
Step 16: Press Rod Lifter Button (10) to raise rod
lifter (11) and lift rod into rod box.
Step 17: Repeat previous steps to remove additional
rods from drill string and return rods to rod
box.
10
9
7
8
(Step 14)
(Step 15)
11
