Vermeer Navigator D20x22 II Series User Manual

D20x22 Series II Navigator HDD Machine Controls 20-23
Drill Station Controls
OPERATOR PRESENCE/SEAT CONTROLS

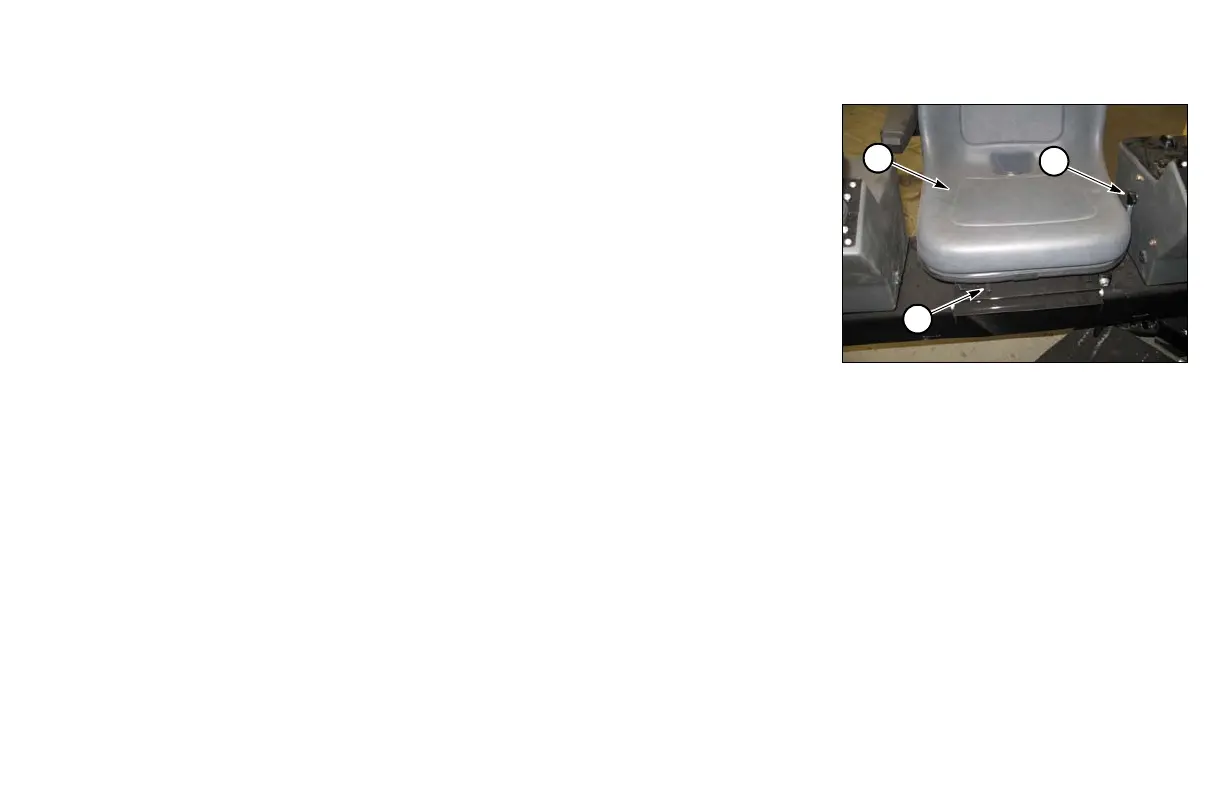

(1) Operator Presence Switch
The machine is equipped with an Operator Presence system in the seat. The
operator must be sitting in the seat for drill rotation, drill thrust, and rod loader
to function.
This system is intended for your safety and must be maintained in good
functional condition.
(2) Adjustment Lever
Push to the side so seat can be moved forward or backward.
(3) Seat Rotation Lever
Pull up on lever and rotate seat until it locks in desired position.
3
1
2
