20-2 Machine Controls D20x22 Series II Navigator HDD
Remote Lockout Controls

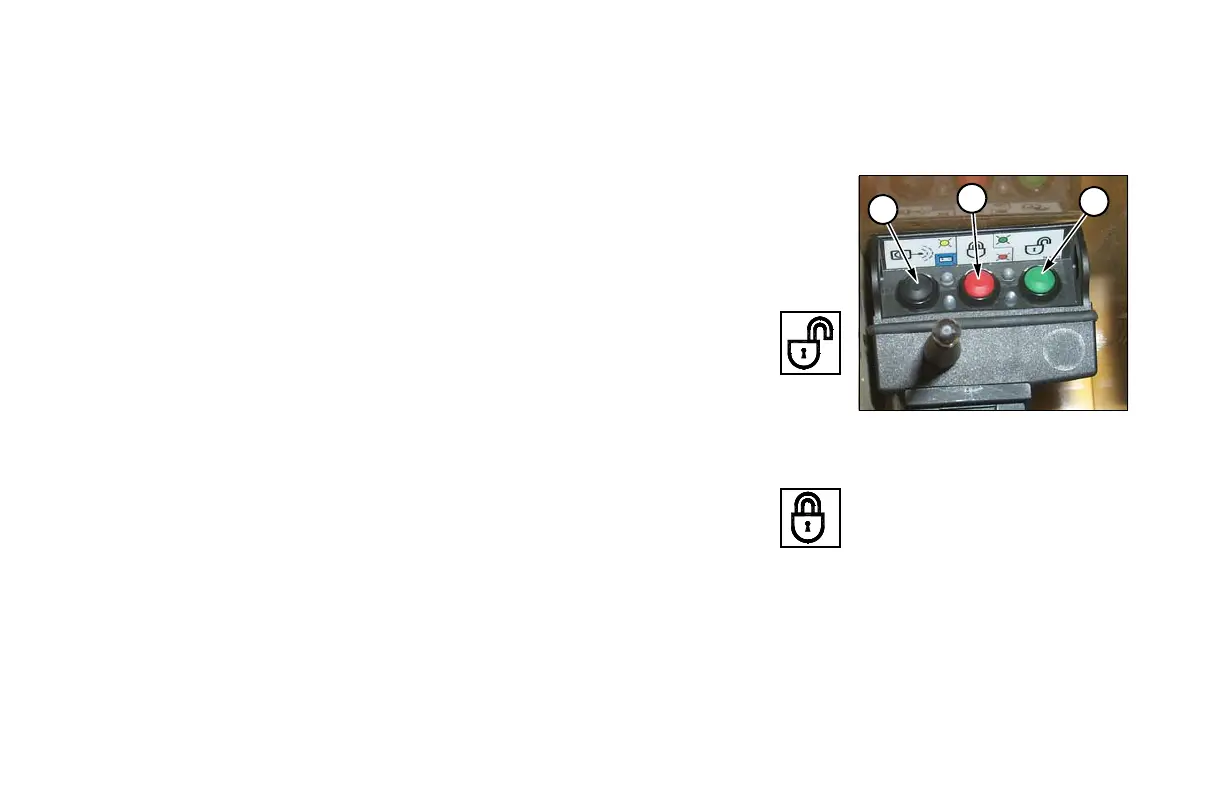

REMOTE TRANSMITTER CONTROLS
In order for the remote transmitter to function, machine ignition key must be ON and operator must be seated.
(1) Power ON/OFF Button (black)
Press and hold until yellow light flashes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ON
Press and hold until all lights are off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OFF
NOTICE: Remote shuts off automatically if there is no communication with
machine after 20 minutes.
(2) Run Button (green)
With transmitter ON:
Press and hold until yellow light flashes. . . . . . . . . . . . . . . . RUN mode requested
When green light comes on, Remote Lockout system is in RUN mode.
With transmitter OFF:
Press and hold. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TEST mode
to initiate testing of transmitter buzzer, vibrator and indicator lights
(3) Lockout Button (red)
With transmitter ON:
Momentarily press and release . . . . . . . . . . . . . . . . . . LOCKOUT mode requested
When lockout is complete, red light will come on (takes approximately 2–5 seconds).
With transmitter OFF:
Press and hold until yellow light flashes. . . . . . . . . . . . . turns transmitter ON and
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . requests LOCKOUT mode
When lockout is complete, red light will come on (takes approximately 2–5 seconds).
