Vermeer Navigator D20x22 II Series User Manual

D20x22 Series II Navigator HDD Machine Controls 20-27

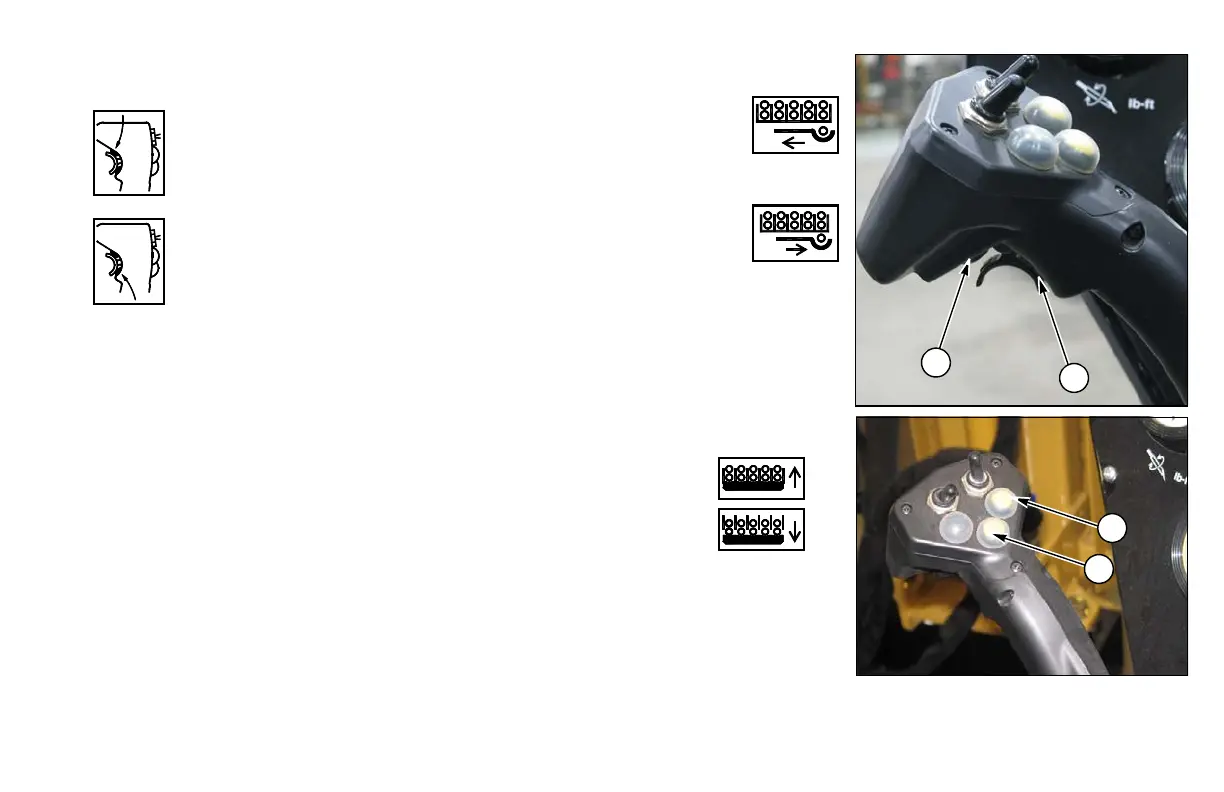

ROD LOADER CONTROLS
(1) Rod Transfer Arms Retract Button (right joystick)
Press trigger up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . move rod arms to rod box
(2) Rod Transfer Arms Extend Button (right joystick)
Pull trigger down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . move rod arms to drill string
(3) Rod Lift Button
Press and hold. . . . . . . . . . . . . . . . . . . . . . . . . . . lift rod to rod box
(4) Rod Lower Button
Press and hold. . . . . . . . . . . . . . . . . . . lower rod to transfer arms
1
Right
2
3
4
