D20x22 Series II Navigator HDD Operation 50-5
40˝ Stakedown Option
Step 1: Extend cylinders to remove stakedowns
from the ground.
Step 2: Move drill away from auger holes and
lower front of rack, supporting stakedown
assemblies on solid ground.

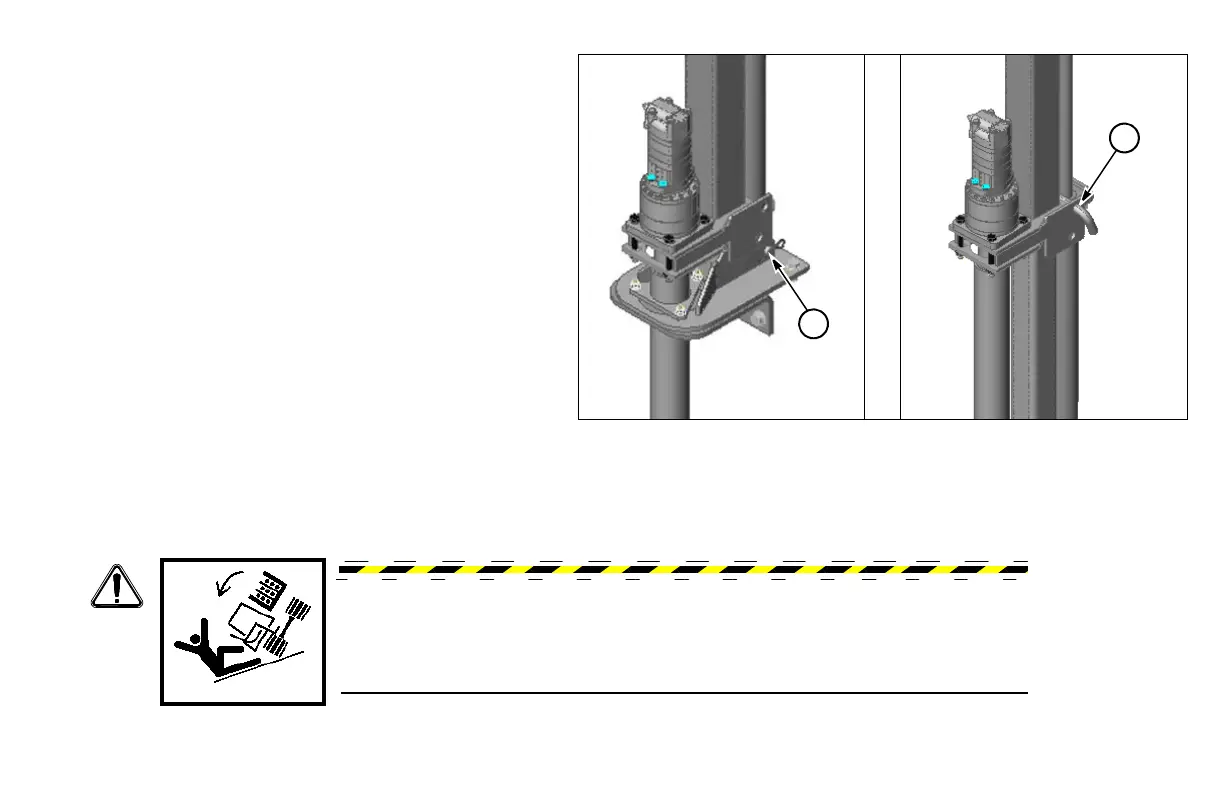

Step 3: Remove pin from lower hole (1) and install
in the upper hole (2), supporting
stakedown on top of cylinder body.
Step 4: Retract cylinder to lower transport height.
TRAILERING THE MACHINE
Loading/Unloading
Before transporting machine on a trailer, read trailer manual for safety precautions and information. Ensure
trailer bed and ramps are free of debris that will interfere with the loading process.
WARNING: Machine may slide down loading ramps or off trailer deck. Serious
injury or death can result if struck or crushed by machine. Do not load onto slick
trailer surface.
