50-4 Operation D20x22 Series II Navigator HDD
Transporting the Machine
DRIVING THE MACHINE
Drive the machine at a speed suitable for the terrain. Never operate machine faster than you can comfortably
walk. Keep feet clear of the track when driving in reverse. Avoid sudden stopping, starting, or turning unless it
is necessary. Never drive machine with rack elevated.
Preparing for Transport

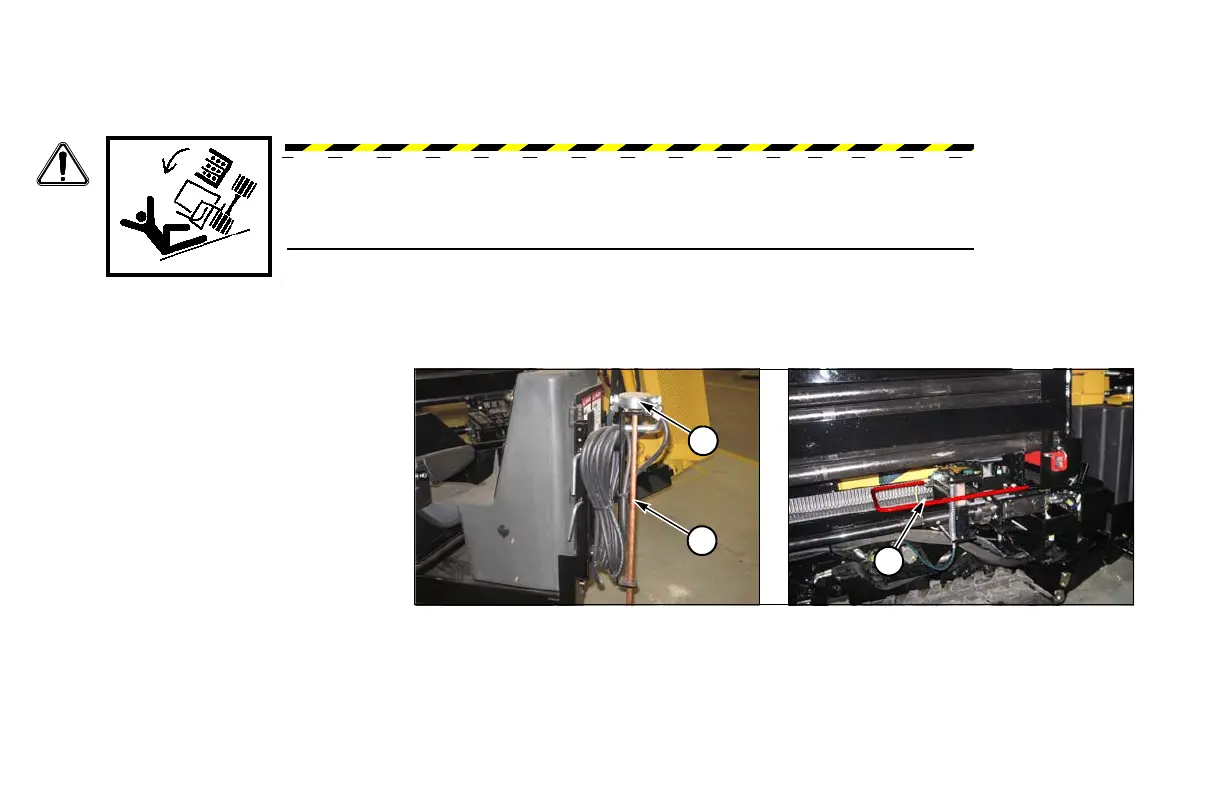

•Store cable (1) and voltage stake
(2) in storage bracket on drill unit.
•Ensure rod retainers are installed
in top of rod box to prevent drill
rods from coming out of rod box
during trailering.
•Position carriage at rear of rack.
•Extend rod loader arms toward
drill rack.
•Rotate operator console fully
towards drill rack.
•Fold in rod transfer arm barriers (3).
WARNING: Rollover possible. Be alert and use extreme caution when operating
on hillsides, or near ditches, gullies, holes, or obstructions where rollover could
occur. Serious injury or death can result if crushed under the machine. Never
allow anyone to be on the downhill side of the machine.
To Next Page
