20-18 Machine Controls D20x22 Series II Navigator HDD

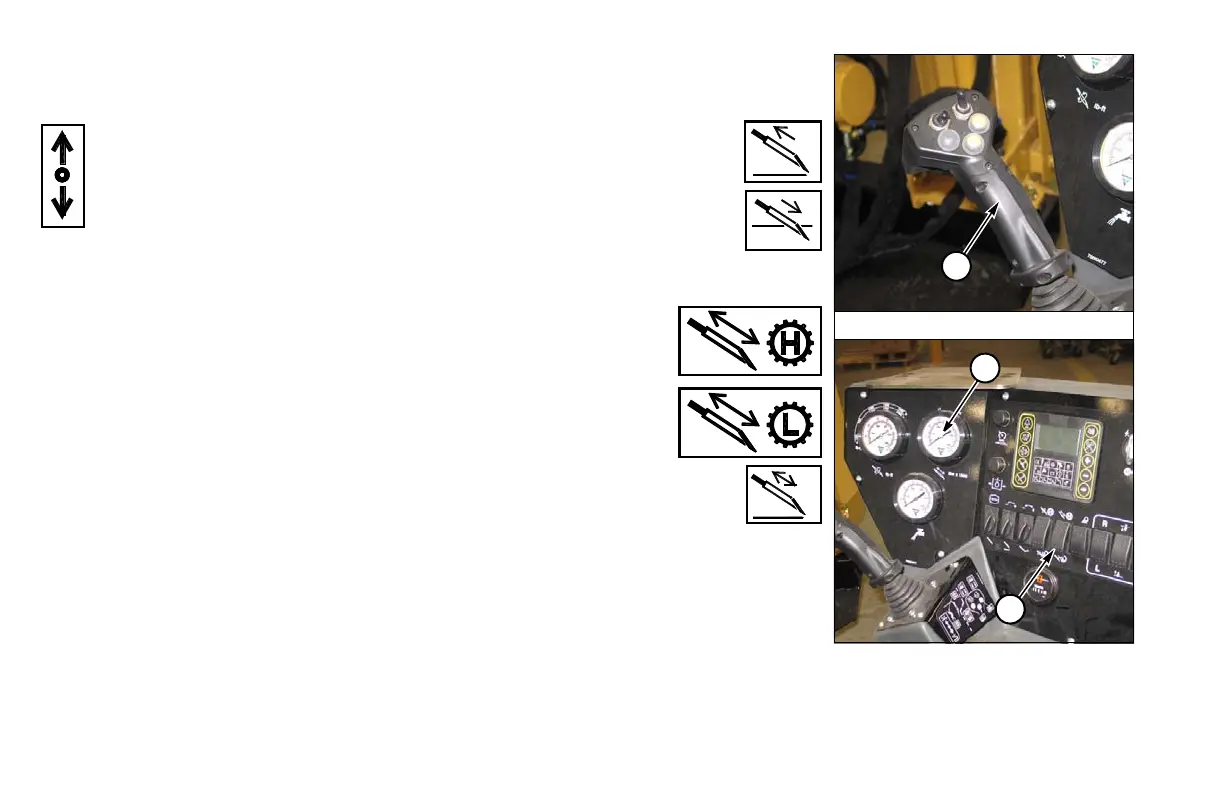

THRUST/PULLBACK CONTROLS
(1) Thrust/Pullback Handle (Right Handle)
Pull . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pull back (retract) drill
Push . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . drill forward
The Thrust/Pullback Handle automatically returns to the NEUTRAL
position when released.
(2) 2-Speed Thrust Button
Press top. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . high
Press bottom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . low
Speed is automatically switched to HIGH when front vise is clamped.
(3) Thrust/Pullback Pressure/Force Gauge
2
3
1
