D20x22 Series II Navigator HDD Overview 30-11
REMOTE REGISTRATION
If the Remote Lockout system base or
transmitter are replaced, registration
of the two components must take place.

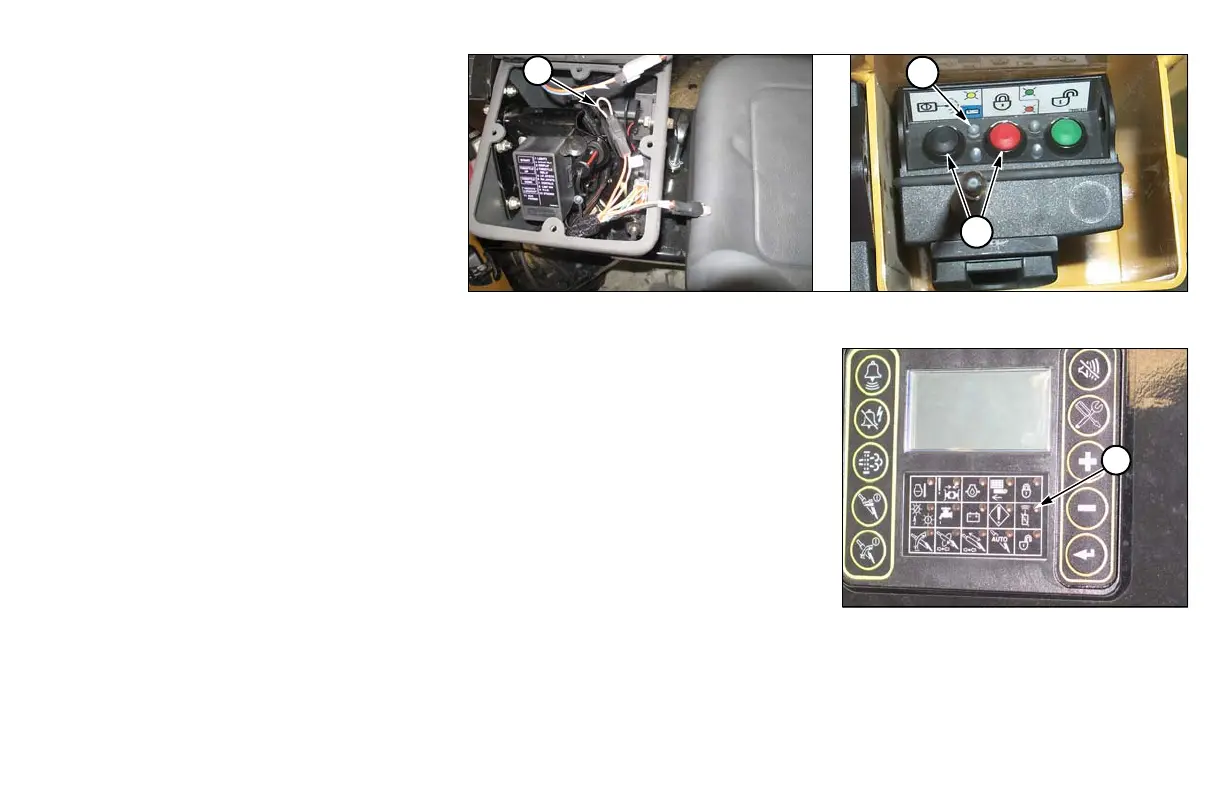

Step 1: Turn Ignition Switch to ON.
Step 2: Open compartment below left
console.
Step 3: Remove 2-pin jumper (1)
used to select Hydraulic
Lockout or Engine Lockout
mode. Wait for 3 seconds.
Steps 3–6 must take place within 10 seconds, otherwise registration may not take
place.
Step 4: Install jumper into same connector.
Step 5: Turn remote transmitter ON.
Step 6: Press and hold red Lock and black Power buttons (2) simultaneously for 2
seconds until yellow “No Communications” light (3) begins to double flash.
Remote is in the Registration mode.
In about 3 seconds Light B on the base controller (1) begins to double flash red. Base
controller is in Registration mode. Yellow “No communications” lights on the remote
and machine (4) will be flashing.
Step 7: Wait for registration results. Within 10 to 30 seconds, the yellow No
communications” lights on the remote and the machine should turn off. Remote is now registered to
the base and all previous registration has been erased. Close compartment.
1
3
2
4
