Vermeer Navigator D20x22 II Series User Manual

20-30 Machine Controls D20x22 Series II Navigator HDD
Manual Row Selector

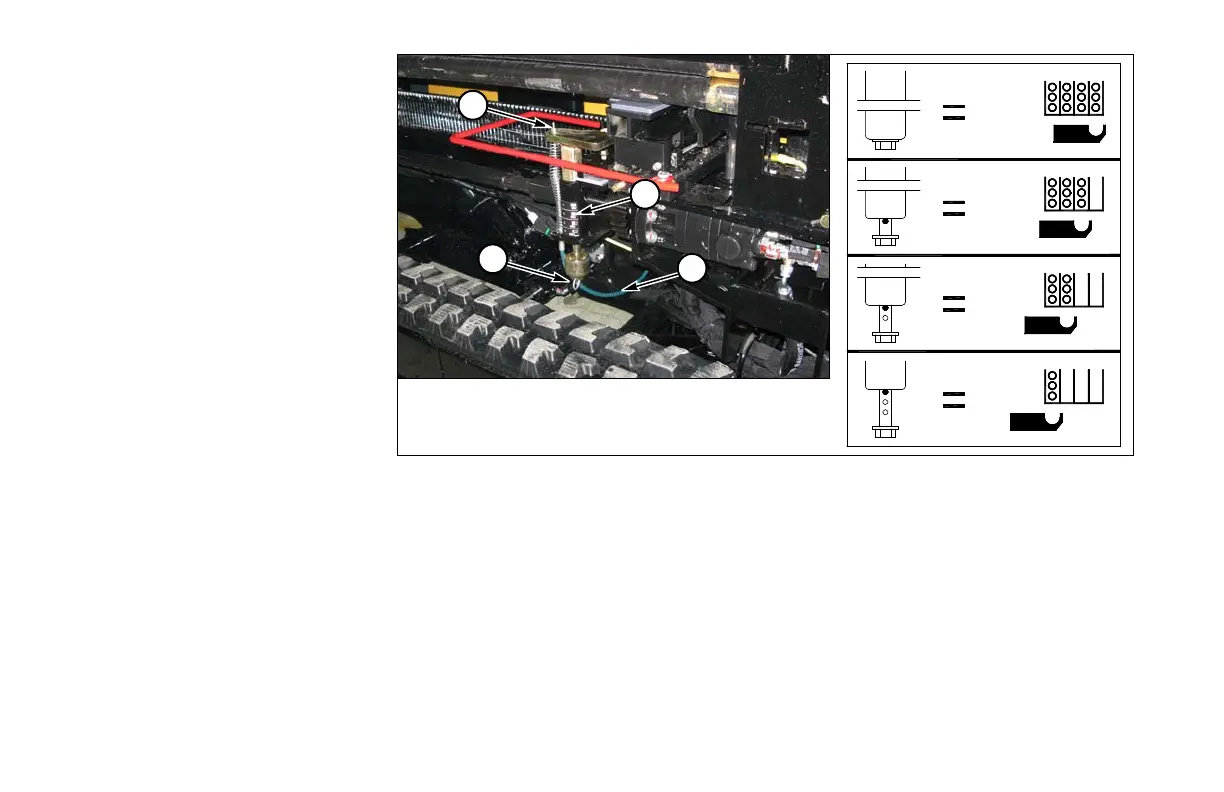

If cable (1) from Row Selector Lever
(refer to previous page) is frozen or
stuck:
Step 1: Remove pin (2) to
disconnect cable.
Step 2: Remove pin (3) and move
bracket (4) up or down to
desired position. Refer to
decal on bracket.
Step 3: After completion of bore,
re-attach bracket to spring
assembly with pin (2).
700IF447
3
1
2
4
