Vermeer Navigator D20x22 II Series User Manual

20-4 Machine Controls D20x22 Series II Navigator HDD

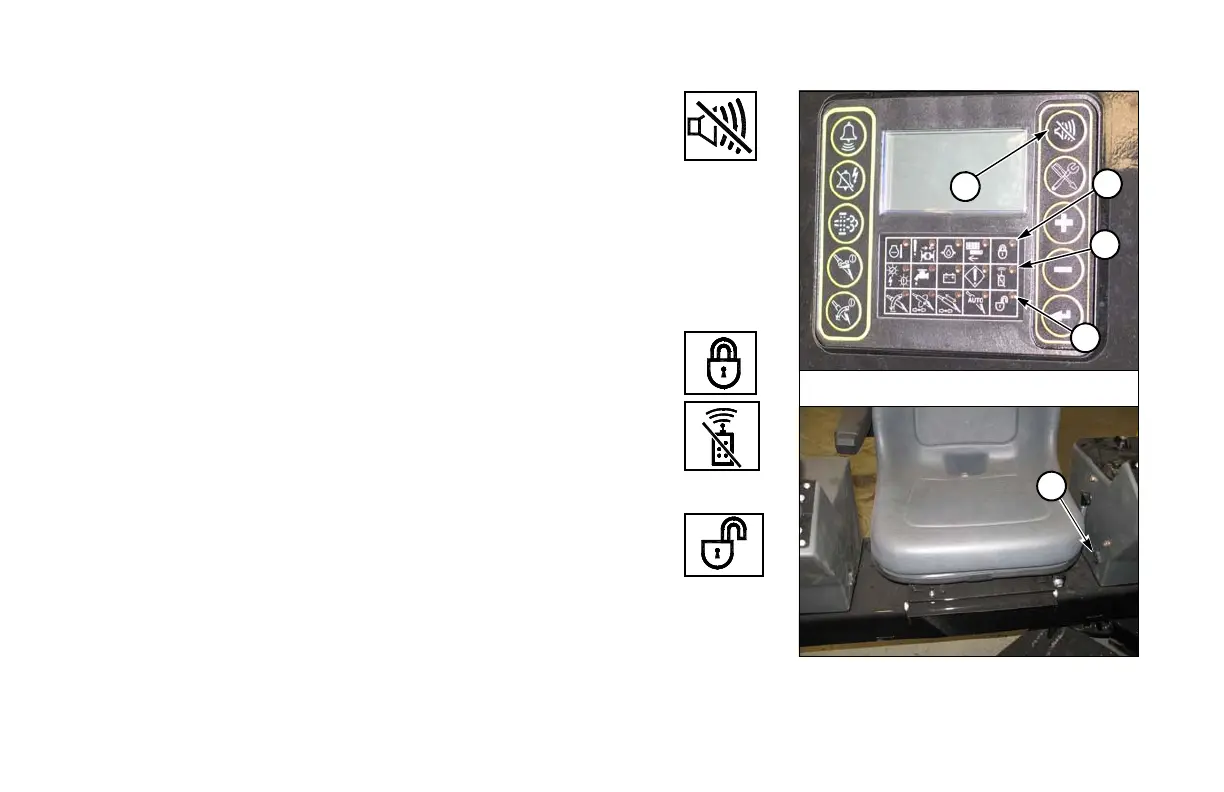

REMOTE LOCKOUT MACHINE CONTROLS
(1) Alarm Cancel Key
Press to cancel continuously sounding alarm (2) when radio
communication is not established.
(2) Alarm
Alarm sounds with a series of beeps or continuous tone to indicate
various operating and Remote Lockout system conditions.
Indicator Lights
Flashing or steady lights indicate various operating conditions.
(3) LOCKOUT Mode Light
Red steady . . . . drill rotation, thrust/pullback, and fluid locked out
(4) Processing Light
Yellow flashing . . . . . . . . . . . . . . . . . . . . . . m a c h in e s t a t e u n k n o wn;
. . . . . . . . . . . . . . . . . . attempting to establish radio communication
Double flashing . . . . . . . . . . . . . . . . . . . . . . . . . . . Registration mode
(5)
RUN Mode Light
Green steady . . . . . . . . . . . . . . . . . drill control returned to operator
Green flashing . . . . . . . lockout requested, waiting for confirmation
2
3
4
5
1
