Vermeer Navigator D20x22 II Series User Manual

30-4 Overview D20x22 Series II Navigator HDD
Power ON/OFF Button

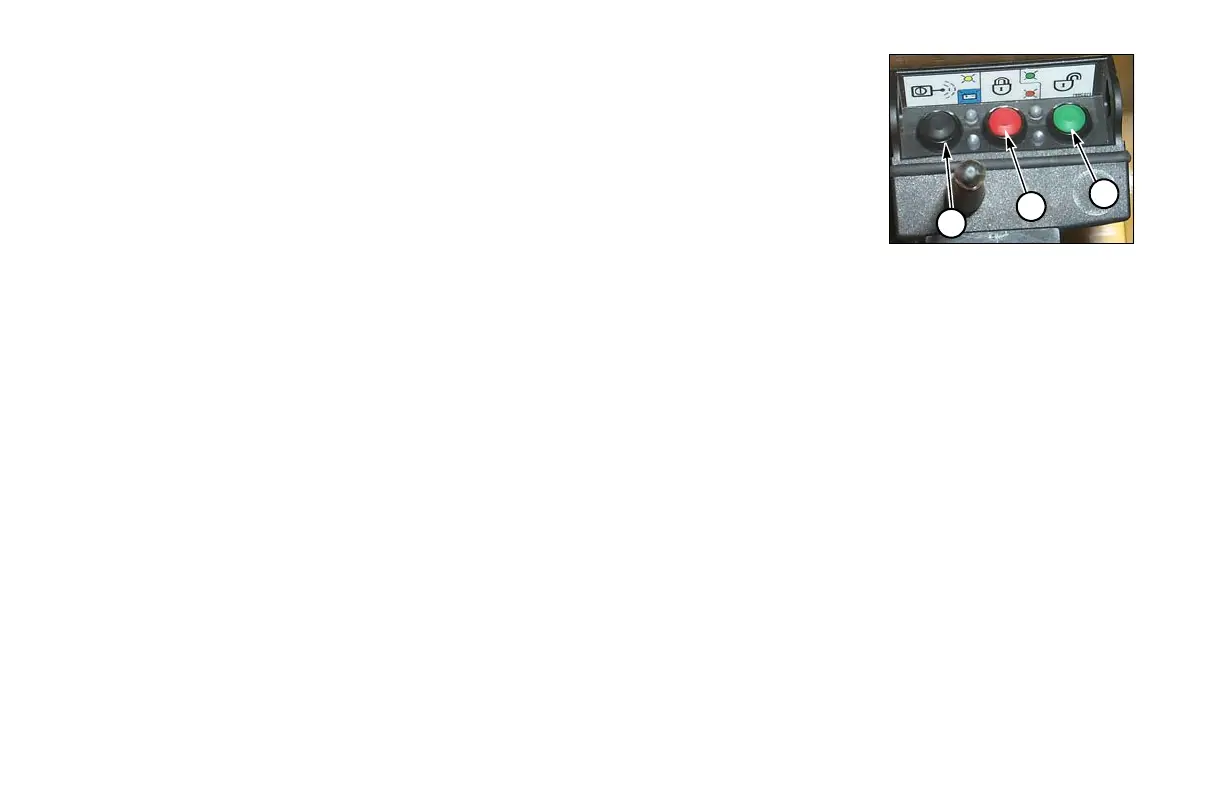

The Remote Lockout system can be turned on by pressing Power ON/OFF Button (1) and
holding for 2 seconds, or by pressing Lockout Button (2).
Press Power ON/OFF Button (1) and hold for 2 seconds to shut off transmitter power.
When the remote transmitter power is on, at least one light should be illuminated. If no lights are
illuminated on the remote, the power is off, the battery is dead or the remote is not functioning.
Run Button
The drill unit ignition key must be ON before the Remote Lockout system is turned on. If not, a loss of radio
signal will be indicated at the remote transmitter. Refer to “Remote Lockout Tests,” page 30-6.
When Remote Lockout system is on, press green Run Button (3) and hold for 2 seconds to transfer control of
drilling functions to the machine operator. Green lights on transmitter and machine come on, and buzzers at
each location sound for 2 seconds.
When remote transmitter is OFF, p re ss in g an d ho l di ng t he Run Button (3) for 2 seconds will test the remote
transmitter buzzer, vibrator, and indicator lights. Refer to “Remote Transmitter Indicators - Test” in the
Maintenance Manual.
2
1
3
