20-26 Machine Controls D20x22 Series II Navigator HDD

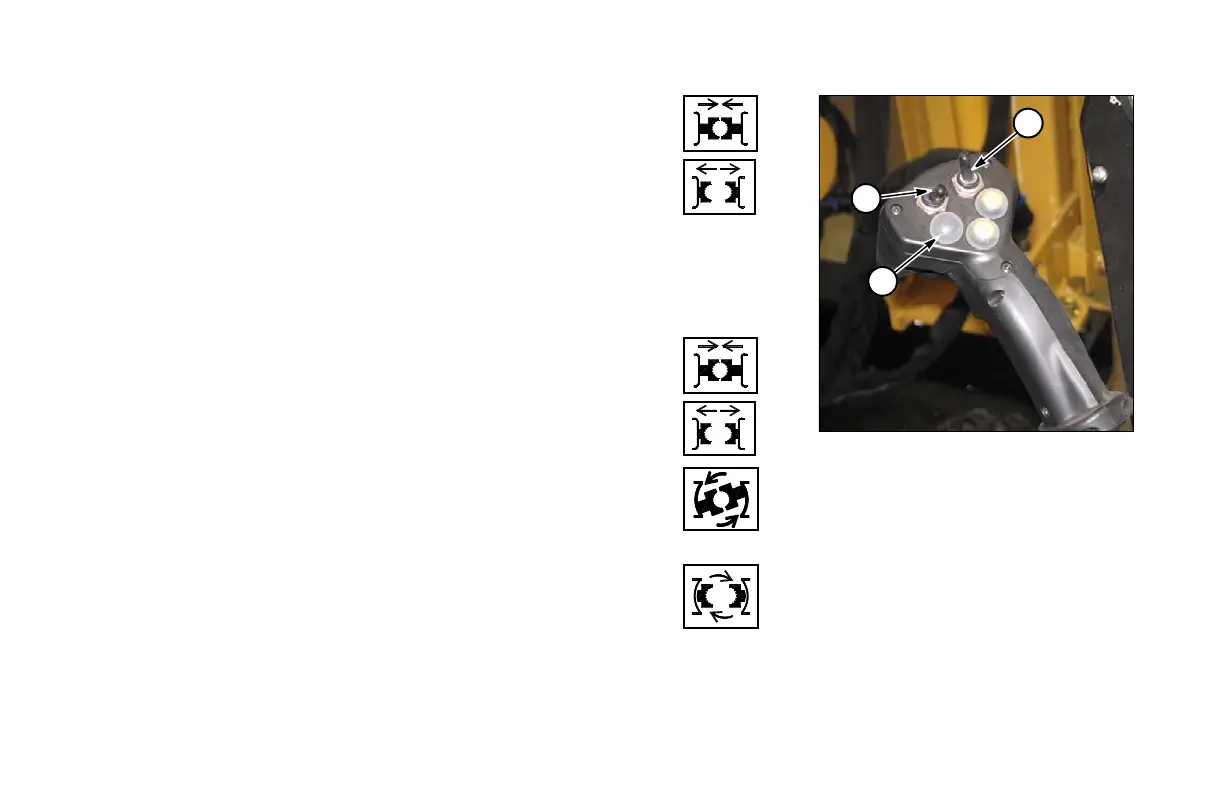

POWER VISE CONTROLS
(1) Front Vise Switch
Push up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . clamp front drill rod
Push down. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . release
Rod lift and lower functions do not operate when the front vise is
open.
The front slowdown function does not operate when the front vise is
open.
(2) Rear Vise Switch
Push up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . clamp rear drill rod
Push down. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . release
(3) Vise Rotation Button
Press once . . . . . . . . . . . . . . . . . . . rotate vise to loosen rear drill rod
so it can be unthreaded from front rod
Press again . . . . . . . . . . . . . . . . . . . . . . .rotate vise to home position
1
2
3
