D20x22 Series II Navigator HDD Electronic Controller 21-3

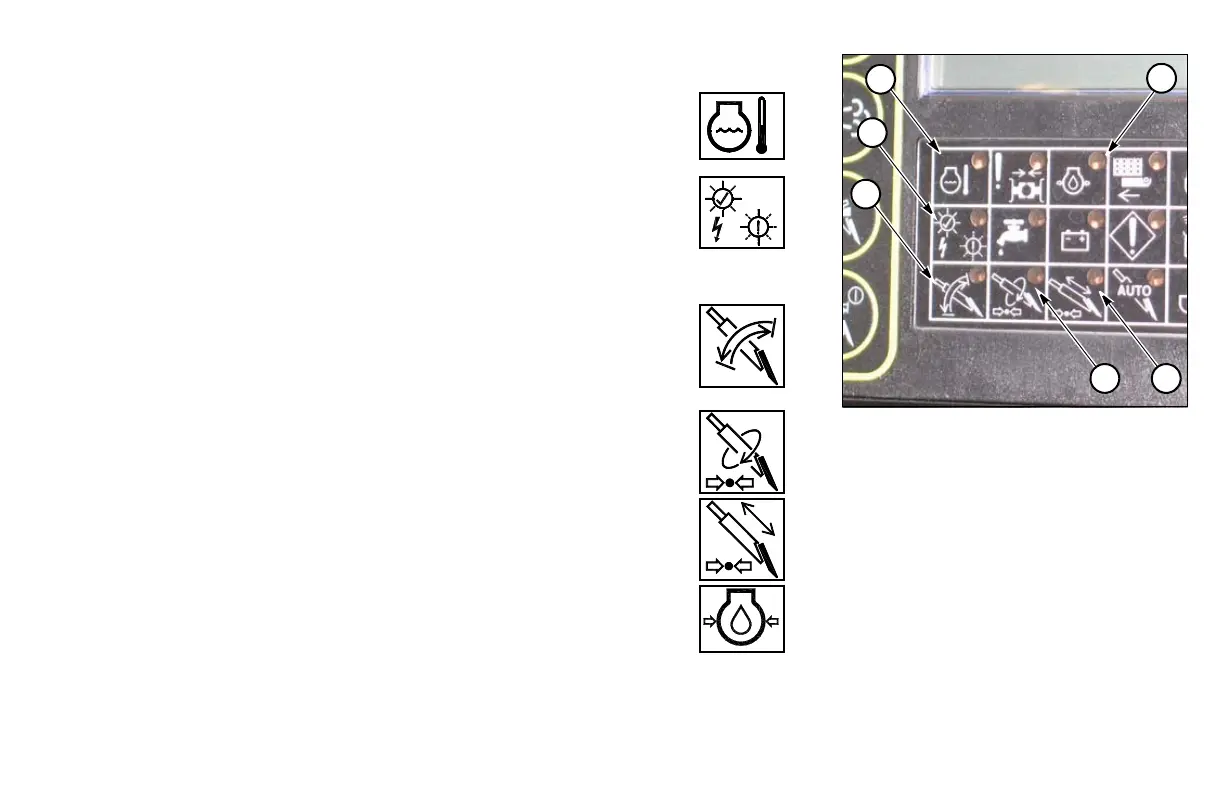

CONTROLLER LIGHTS
(1) Low Engine Coolant Temperature Light (red)
Comes on if coolant becomes too hot
(2) Strike Alert Light (green)
ON: Strike Alert system test passed
FLASHING: Sensor failure, voltage stake not in ground, or
voltage stake wiring problem
OFF: Bulb burned out or problem in wire harness
(3) R.A.T.T. Oscillation Mode Enabled Light (green)
Indicates that R.A.T.T. Oscillation mode is enabled Light goes
OFF (indicating Straight Drilling mode) when R.A.T.T. Mode
Key (7) is toggled.
(4) Rotation Limiter Light (green)
Indicates that rotation pressure limiter is active
(5) Thrust Limiter Light (green)
Indicates that thrust/pullback pressure limiter is active
(6) Low Engine Oil Pressure Light (red)
Comes on when oil pressure is low
1
3
2
4 5
6
