20-16 Machine Controls D20x22 Series II Navigator HDD
Setup Controls

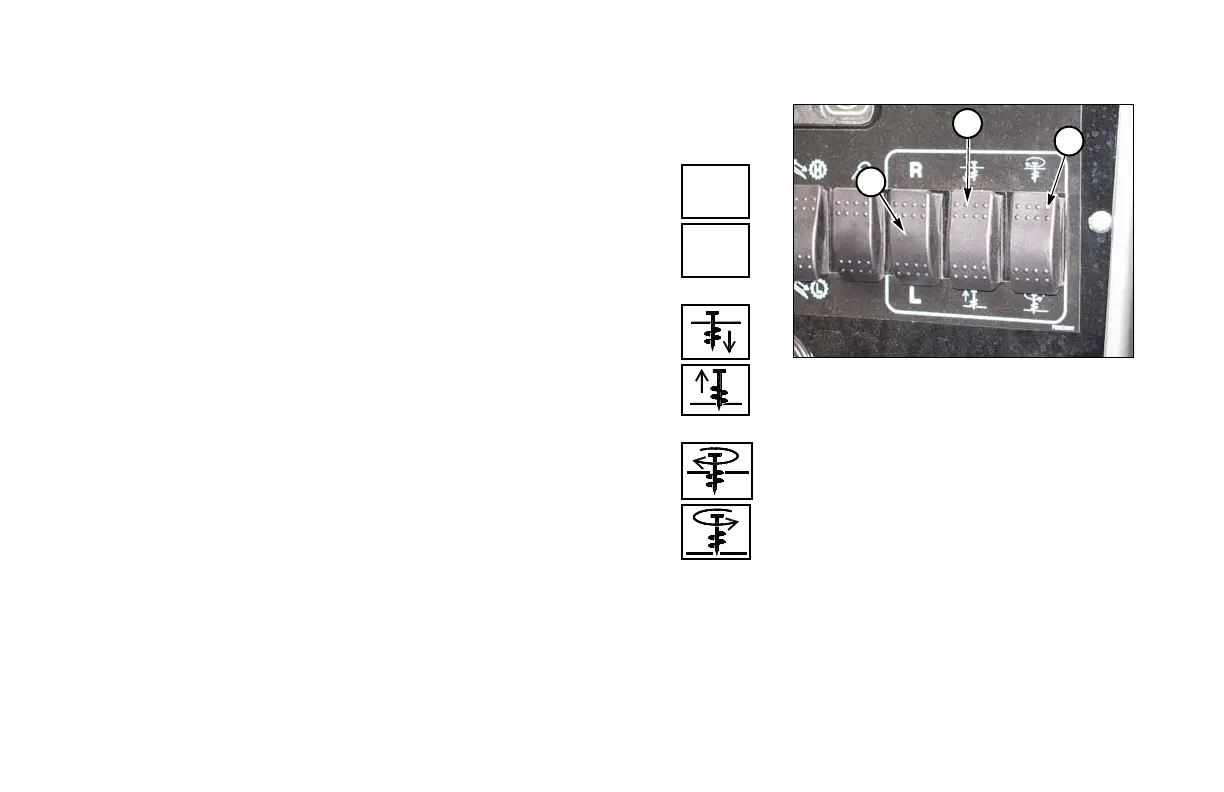

STAKEDOWN CONTROLS
(1) Stakedown Control Selector
Push top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . select right stakedown
Push bottom. . . . . . . . . . . . . . . . . . . . . . . . . . . .select left stakedown
(2) Stakedown Driver Cylinder Switch
Push top . . . . . . . . . . . . . . . . . . . . . . . . . drive stake into the ground
Push bottom. . . . . . . . . . . . . . . . . . . . remove stake from the ground
(3) Stakedown Driver Motor Switch
Push top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . stake turns clockwise
Push bottom. . . . . . . . . . . . . . . . . . . . stake turns counterclockwise
1
3
2
R
L
