Vermeer Navigator D20x22 II Series User Manual

30-8 Overview D20x22 Series II Navigator HDD
HYDRAULIC LOCKOUT OR ENGINE SHUTDOWN OPTION
The Remote Lockout system is equipped with an option to operate as either a
hydraulic lockout (default) or an engine shutdown system. Plugs and connectors are
located in the compartment below left control console.
To change the system to engine shutdown:
Step 1: Move ignition key to OFF position.
Step 2: Open compartment below left control console.

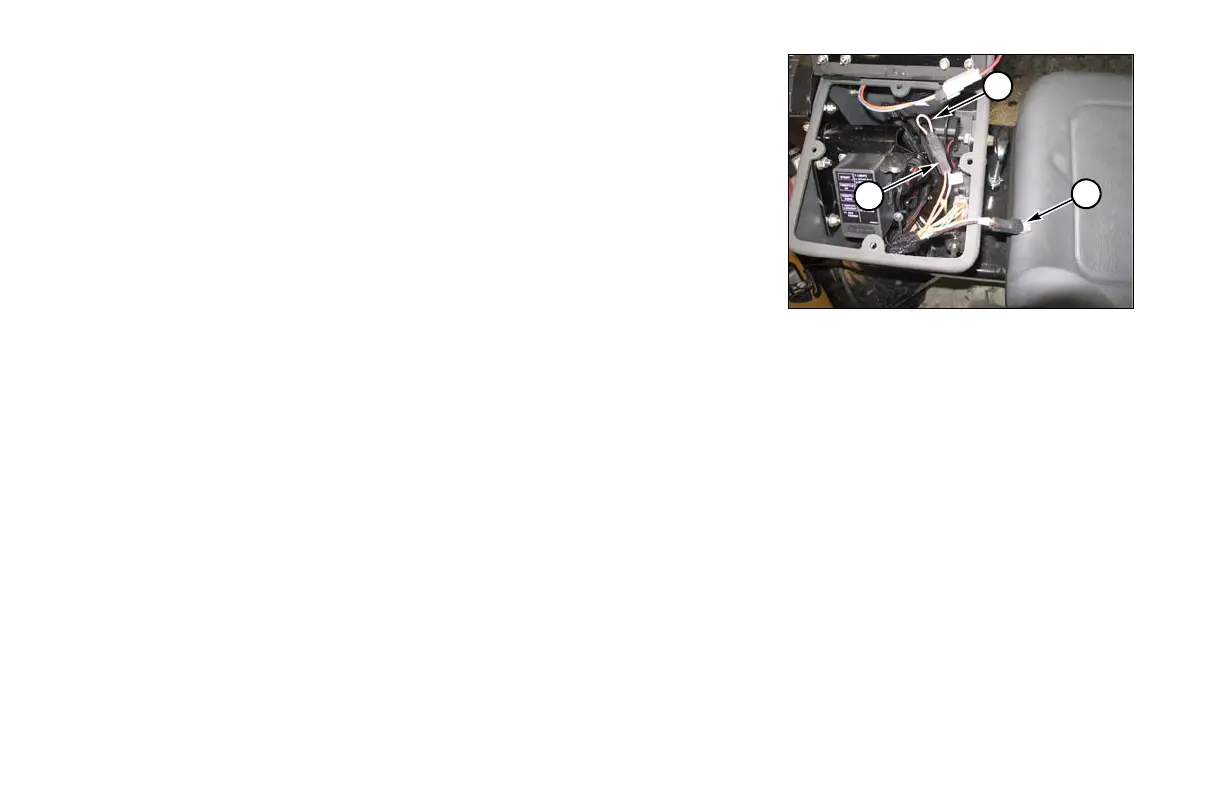

Step 3: Remove 2-pin jumper plug (1) from hydraulic shutdown connector (2) (with
orange wire), and attach jumper plug to engine shutdown connector (3)
(with black wire).
Step 4: Follow Starting Procedure, page 50-1.
When machine is in Drill mode, a lockout command will disable the fuel and start circuits. To restart machine
after lockout, select Run mode and wait for the solid green light, then turn ignition key to START position.
To change system back to hydraulic lockout:
Step 1: Move ignition key to OFF position.
Step 2: Remove jumper plug (1) from engine shutdown connector (3) (with black wire), and attach jumper
plug to hydraulic shutdown connector (2) (with orange wire).
Step 3: Follow Starting Procedure.
A lockout command will now disable hydraulic functions.
2
3
1
