D20x22 Series II Navigator HDD Machine Controls 20-13

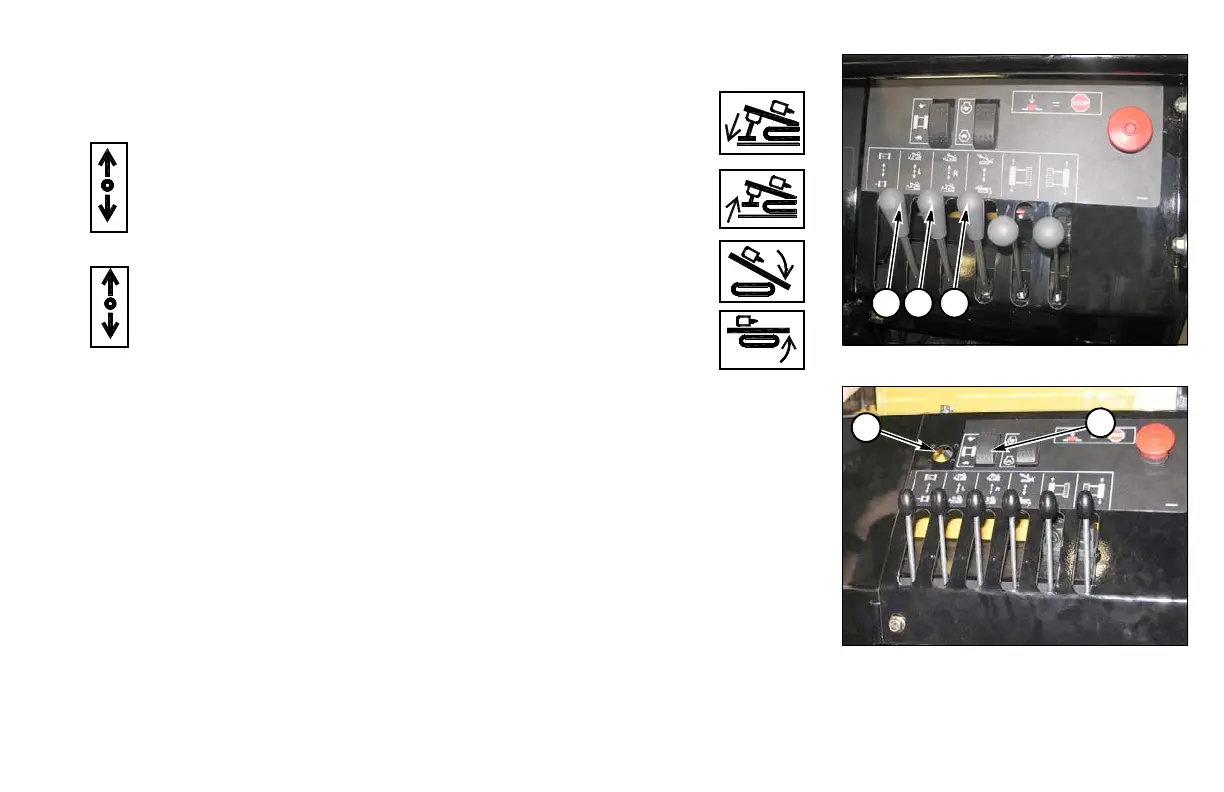

(4) Left Rear Stabilizer Lever
(5) Right Rear Stabilizer Lever
Push . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . lower stabilizer
Pull . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . raise stabilizer
(6) Rack Angle Lever
Push . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . tilts rack
Pull . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . levels rack
(7) Tethered Transport Control (Option) Connector
Ground Drive Range Switch (1) must be in LOW in order to allow
tethered Ground Drive Range Switch to shift from LOW to HIGH.
