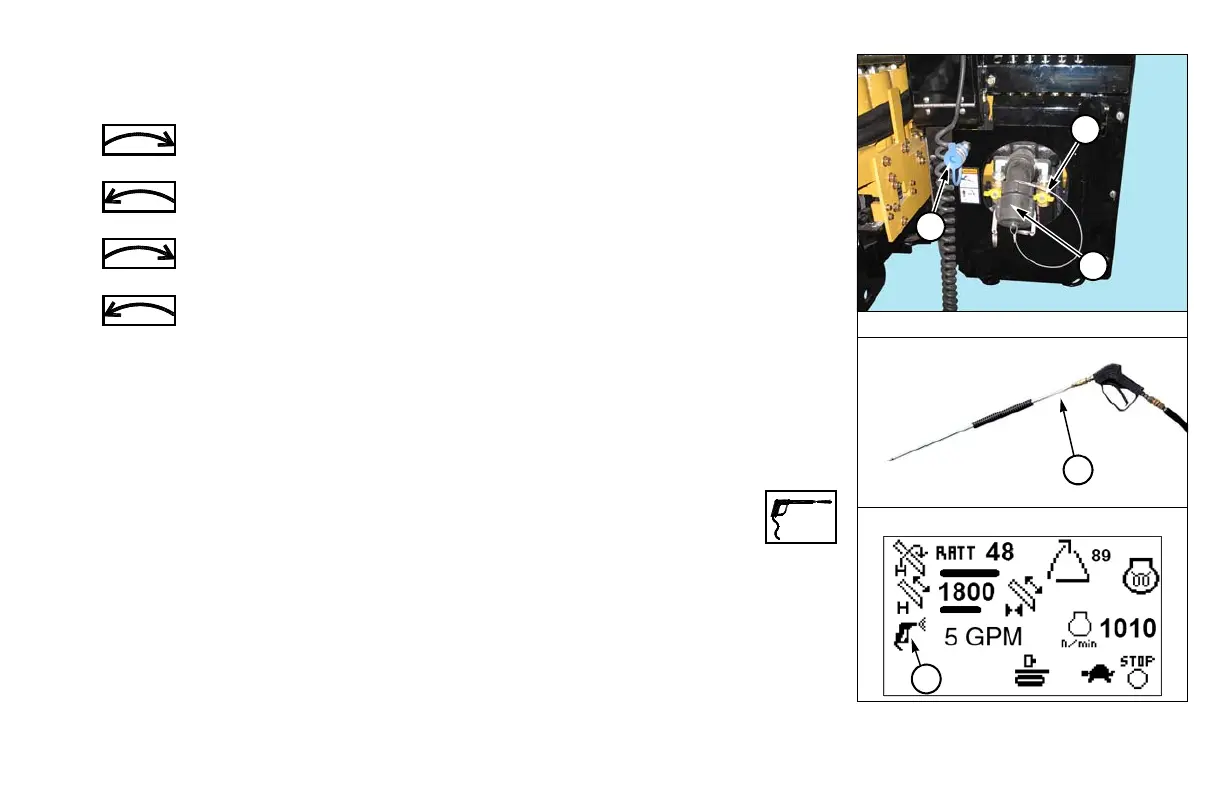

D20x22 Series II Navigator HDD Machine Controls 20-33
(6) Wash Wand Quick Coupler
(7) Fluid Tank System Valve
Rotate down (handle 90º to valve body) . . . . . . . . . . . . . . . flow OFF
Rotate up (handle in-line with valve body) . . . . . . . . . . . . . flow ON
(8) Antifreeze Supply Valve
Rotate handle in-line to valve body . . . . . . . . . . . . . . . . . . . . . . open
Rotate handle perpendicular to valve body . . . . . . . . . . . . . . . . close
(9) Wash Wand
Squeeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . wash wand ON
Release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . wash wand OFF
Wash wand is enabled when operator is out of the seat.
Flow then defaults to 5 gpm (19 L/min).
(10) Wash Wand Enabled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
