5.1 UPS to POE Switch Communication Cable
To connect the UPS to the switch:
1. The UPS ships with the Vertiv™ Liebert® RDU101 communications card that will connect the UPS to the switch
via the provided network cable. Locate the network cable in the accessory box.
2. After installing the POE switch as described in , use the network cable to connect the card to the switch.

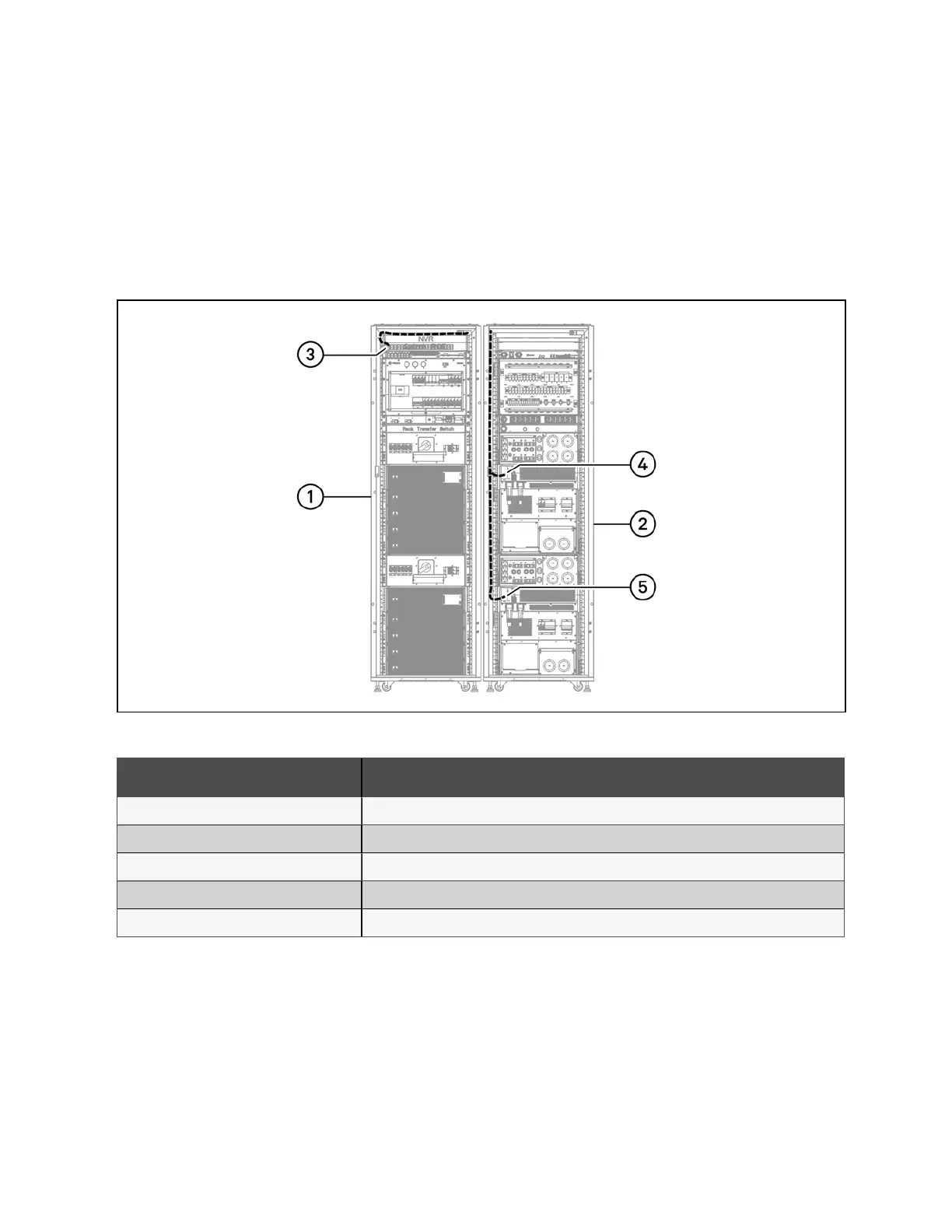

Figure 5.1 UPS and POE Switch Communication Cable Connection
Number Description
1 PMC front side
2 PMC rear side
3 Any network port of the switch
4 UPS 2 Vertiv™ Liebert® RDU101 port
5 UPS 1 Vertiv™ Liebert® RDU101 port
Table 5.3 UPS and POE Switch Communication Cable Connection
