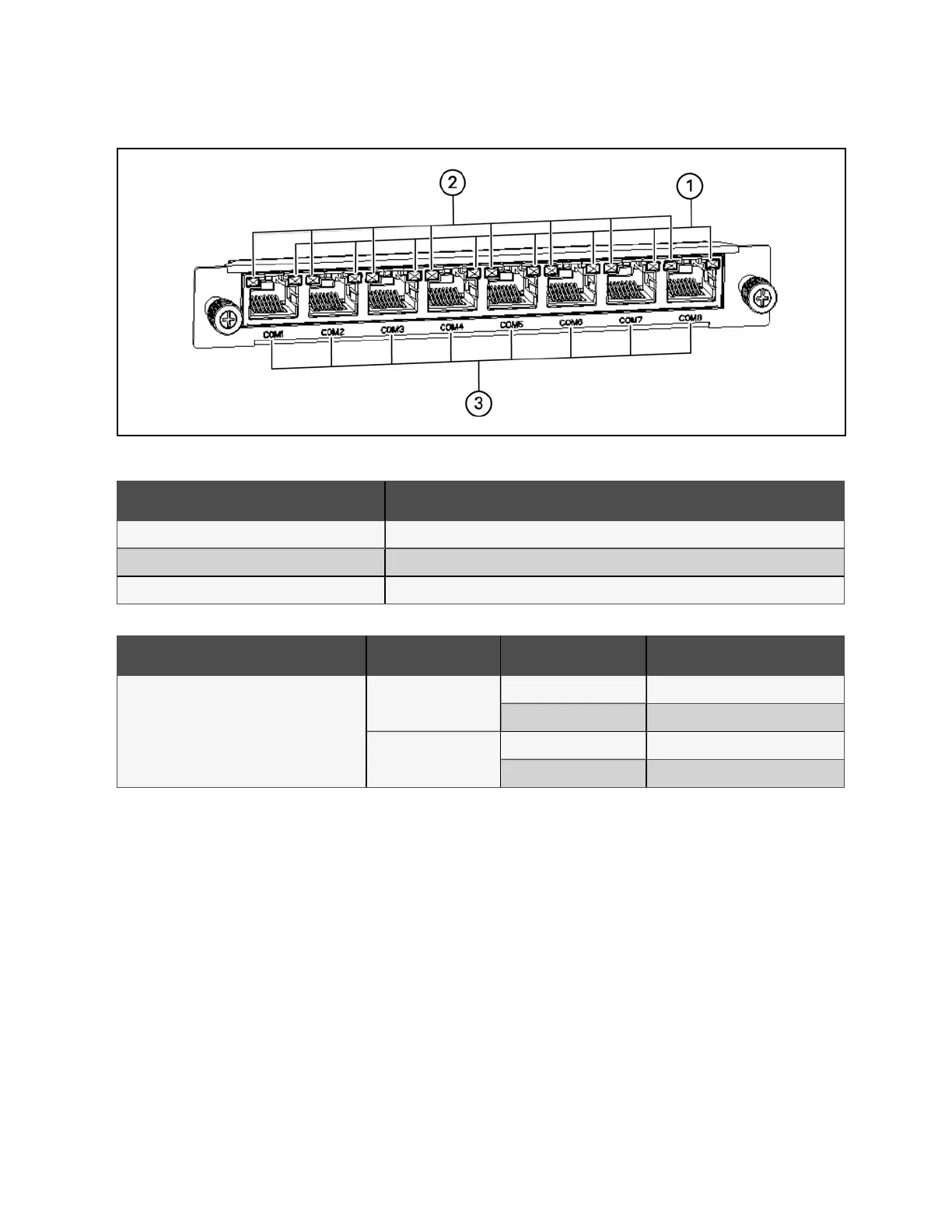

Figure 2.5 EXP8COM card
Number Description
1 Data receiving indicator 1-8
2 Data transmission indicator 1-8
3 Serial port 1-8
Table 2.25 EXP8COM Card
Silk Screen Printing Color Status Description
COM1 to COM8
Green
Blink Receiving data
Off No data received
Yellow
Blink Transmitting data
Off No data transmitted
Table 2.26 EXP8COM Card Indicators
2.6.5 Security system
The security system includes the following:
• Intelligent lock for cabinet door - allows five possible access methods: physical key, numerical code, remote
control, opening card, or badge.
• (Optional) Network Video Recorder (NVR) - can transmit digital video stream via IP cameras, then store and
manage the streams.
• (Optional) IP camera - a real-time monitoring device mounted on top of a cabinet or in a room that enables live
viewing from the web UI of the Vertiv™ Liebert® RDU501 Intelligent Monitoring Unit.
NOTE: A maximum of eight IP cameras can be supported by the NVR.
