5.6 Air Conditioner Communication Cable
To connect the air conditioner communication cable:
Refer to the Air Conditioner Wiring Diagram in the Vertiv™ SmartRow™ 2 Submittal Addendum located on www.Vertiv.com..
The following figure shows the routing path.

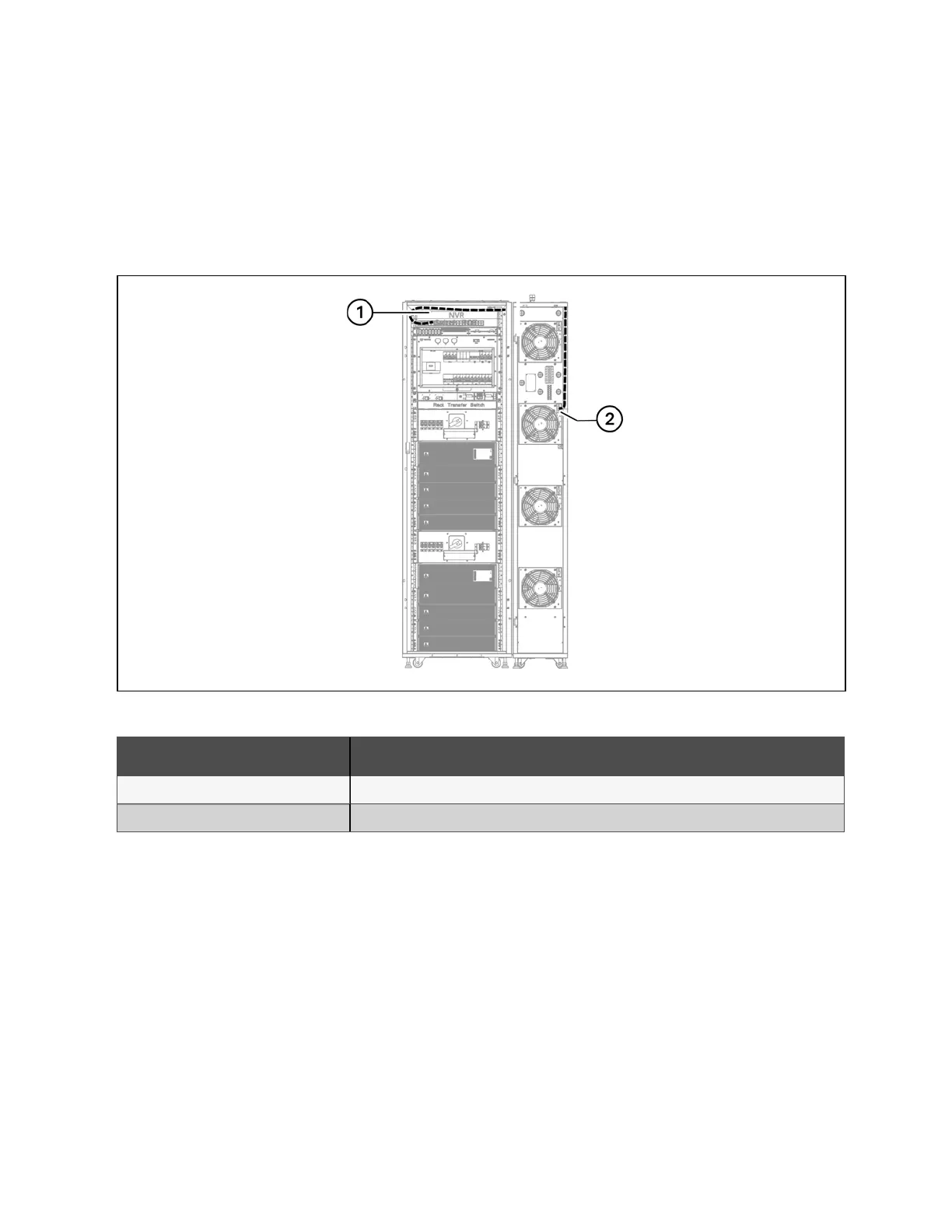

Figure 5.6 Air Conditioner Communication Cable Connection
Number Description
1 Any network port of the switch
2 Vertiv™ Liebert® IntelliSlot™ Unity Card
Table 5.8 Air Conditioner Communication Cable Connection
