5.3 Monitoring Unit to POE Switch Communication Cable
To connect the monitoring unit to the switch:
1. Locate the cable in the accessory box.
2. Use the network cable to connect the LAN2 port of the monitoring unit to any network port on the switch.

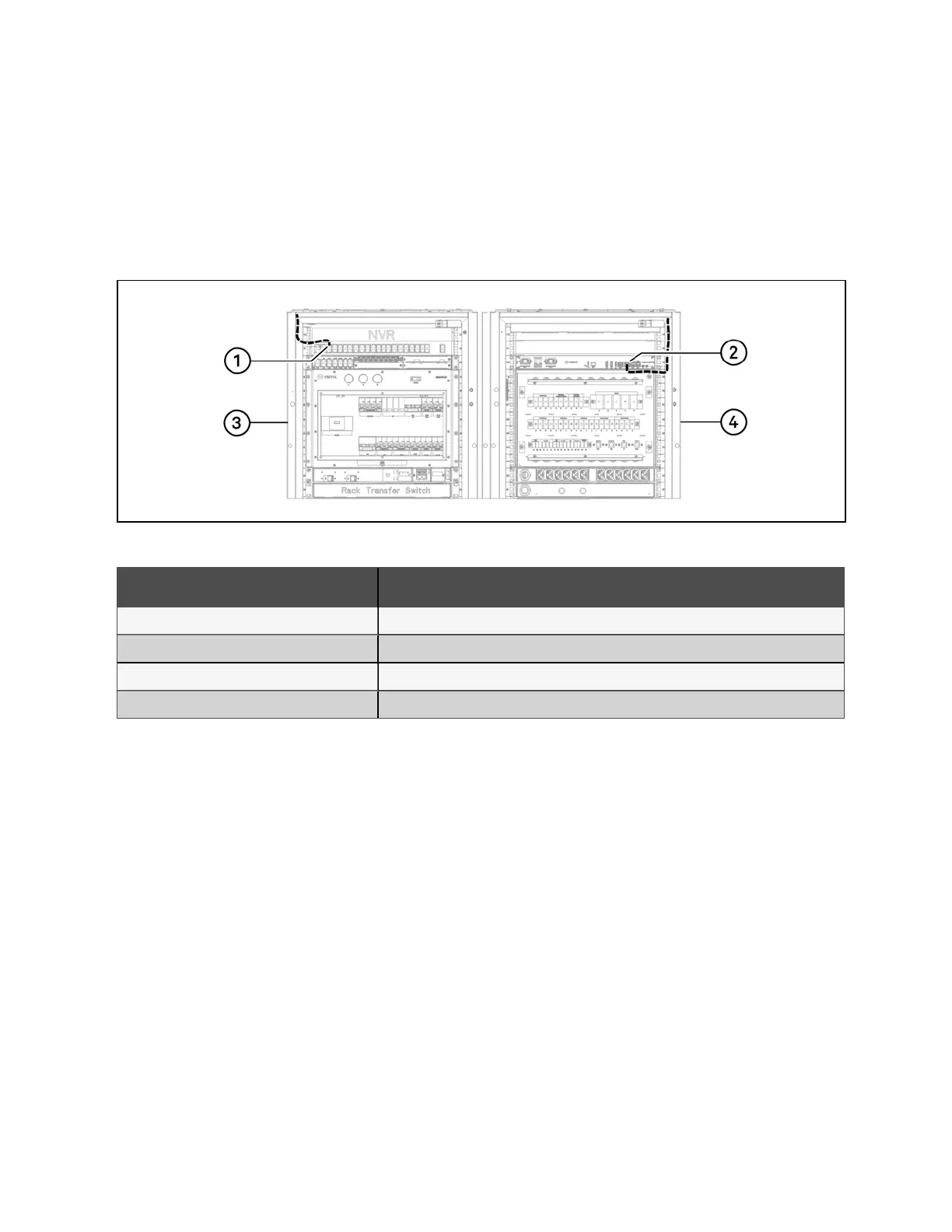

Figure 5.3 Monitoring Unit and POE Switch Communication Cable Connection
Number Description
1 Any network port of the switch
2 LAN2 port of the monitoring unit
3 PMC front side
4 PMC rear side
Table 5.5 Monitoring Unit and POE Switch Communication Cable Connection
