5.8 Water Leak Detection Sensor Communication Cable
To connect the water leak detection sensor communication cable:
Refer to the Air Conditioner Wiring Diagram in the Vertiv™ SmartRow™ 2 Submittal Addendum located on www.Vertiv.com
The following figure shows the routing path.
NOTE: If two air conditioners are selected, connect two communication cables.
NOTE: Select the length of the communication cable in accordance with the air conditioning position.

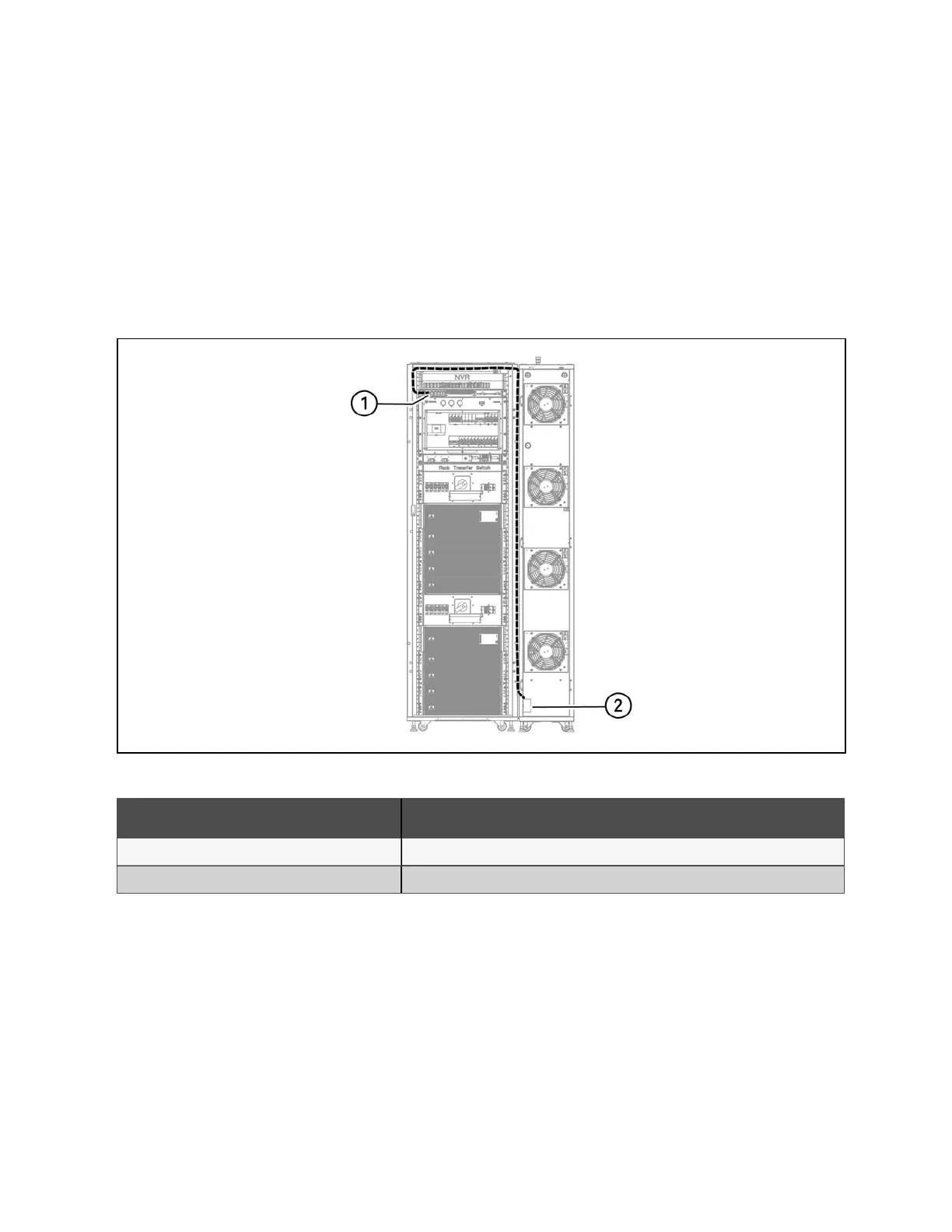

Figure 5.8 Water Leak Detection Sensor Communication Cable Connection
Number Description
1 Monitoring unit DI1 port
2 Water leak detection sensor
Table 5.10 Water Leak Detection Sensor Communication Cable Connection
