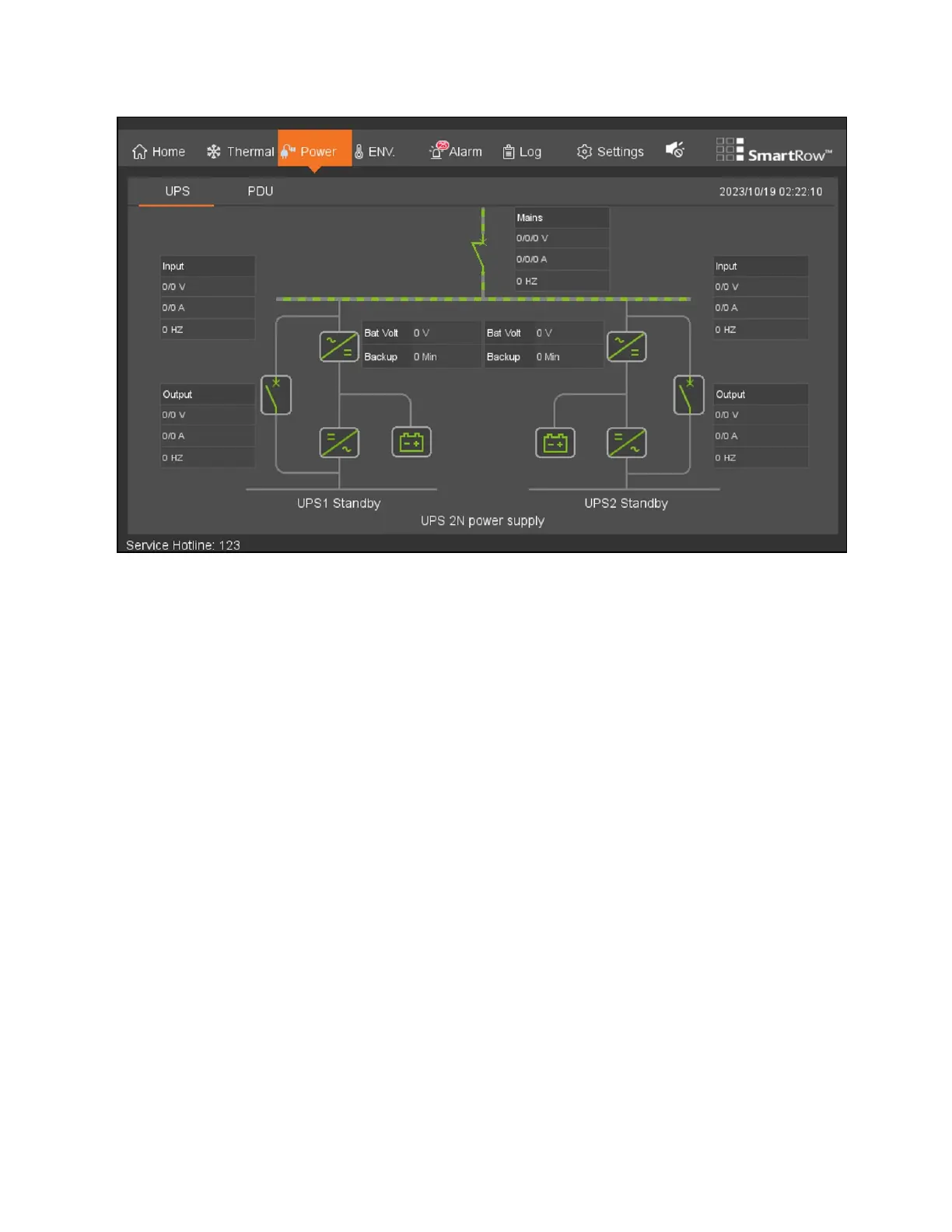

Note the following information about the UPS tab:
• In order for the UPS tab to display the appropriate information, it's critical that the initial cabinet configurations
were completed correctly. Otherwise, the UPS flow diagram will reflect incorrect information related to the
UPStype, mode of operation, common battery, and so on.
• There are four UPS working states: AC mode / bypass mode / Battery mode / standby mode
• There are two system operating states: Single / 2N power supply.
