In order to ensure maximum stability during work:
► Only perform work with an extended telescopic travel gear.
► Lower the stabilizer blade and turn out the extensions.
Changing the width of the stabilizer blade
Damage to machine when traveling through passages.
► Pay attention to the width of the stabilizer blade and of the telescopic
travel gear when traveling through passages.
► Adjust the stabilizer blade and the telescopic travel gear to the same
widths when operating the machine.

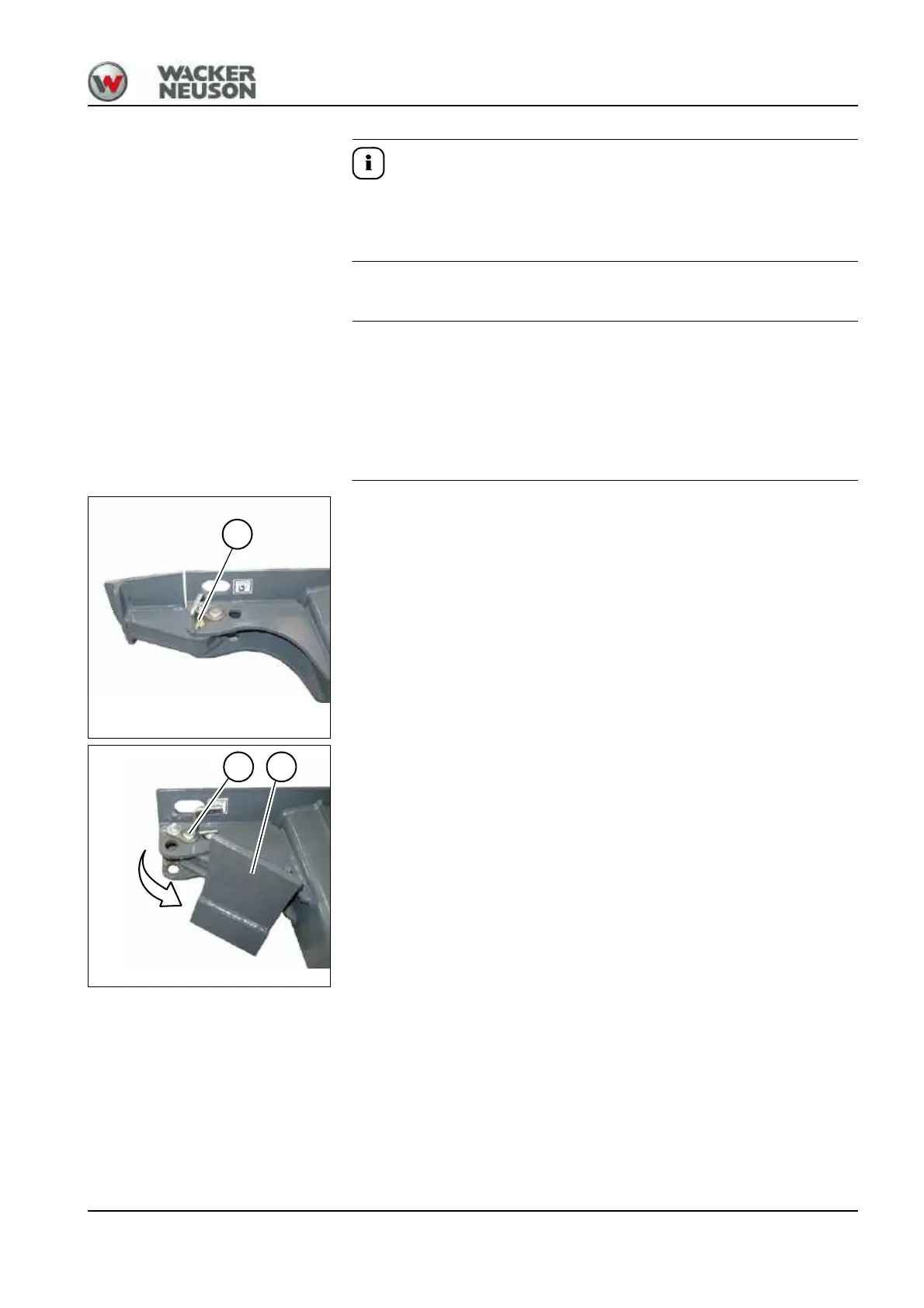

Reducing the width of the stabilizer blade
1. Raise the stabilizer blade to about 1 – 2 cm (about 0.4 – 0.8 in).
2. Pull out pins A on either side.
3. Turn in the stabilizer blade extensions B on either side.
4. Insert pins A on either side.
