Work range
Work range height A: 120 cm (47 in), B: 50 cm (20 in)
Figures 60 and 61 refer to work with a Wacker Neuson hydraulic hammer.
Information
Working with another attachment can result in a different work range.
Installing
1. 2 persons are required for installing.
2. Stop and park the machine. Stop the engine. See “Preparing
lubrication”.
3. Install shatter protection A from the front and tighten it at the fastening
points B with the fastening material supplied.

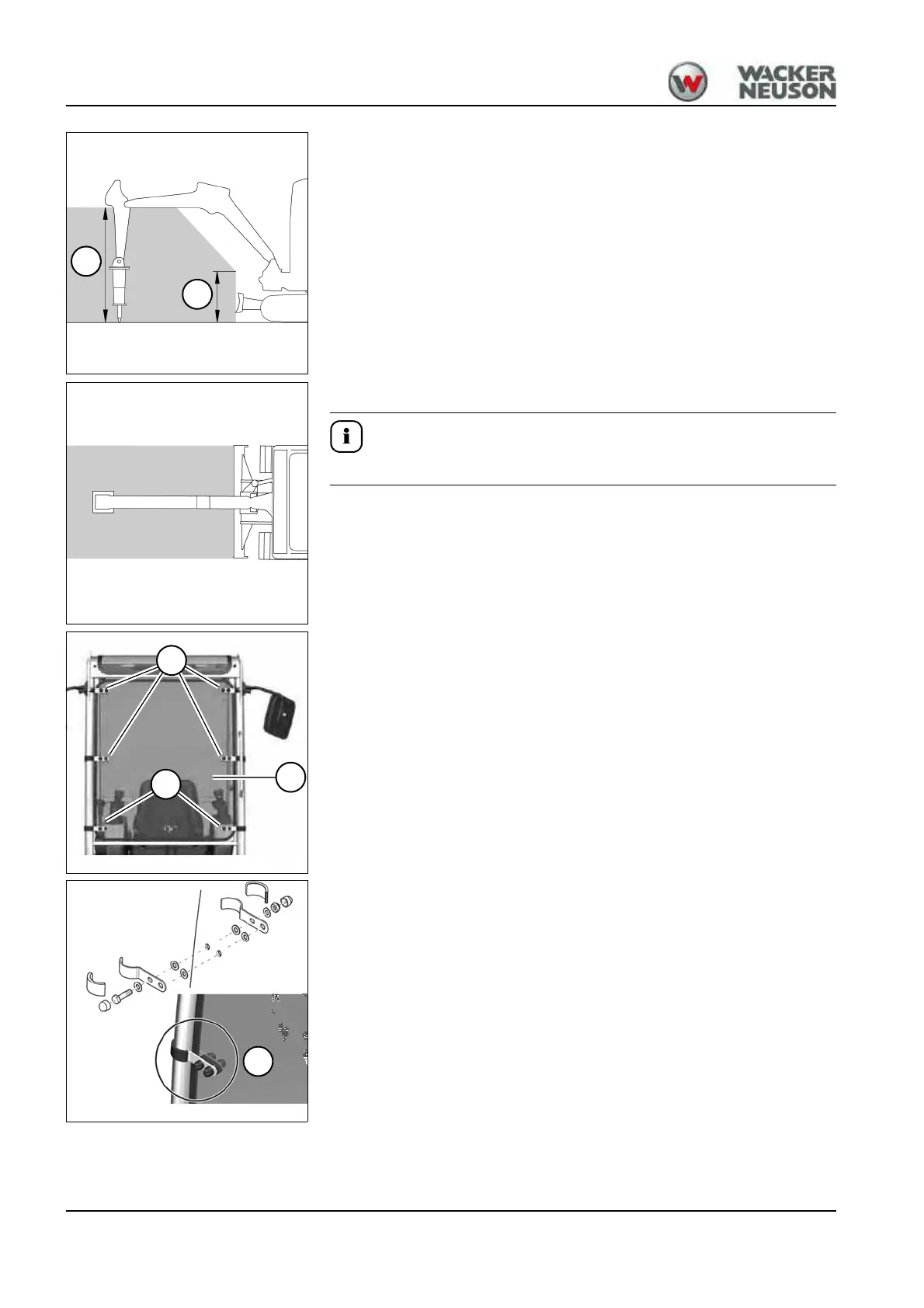

Fig. 60 (symbolic representation)
B
A
45°
Fig. 61 (symbolic representation)
Fig. 62
B
A
B
Fig. 63
B
