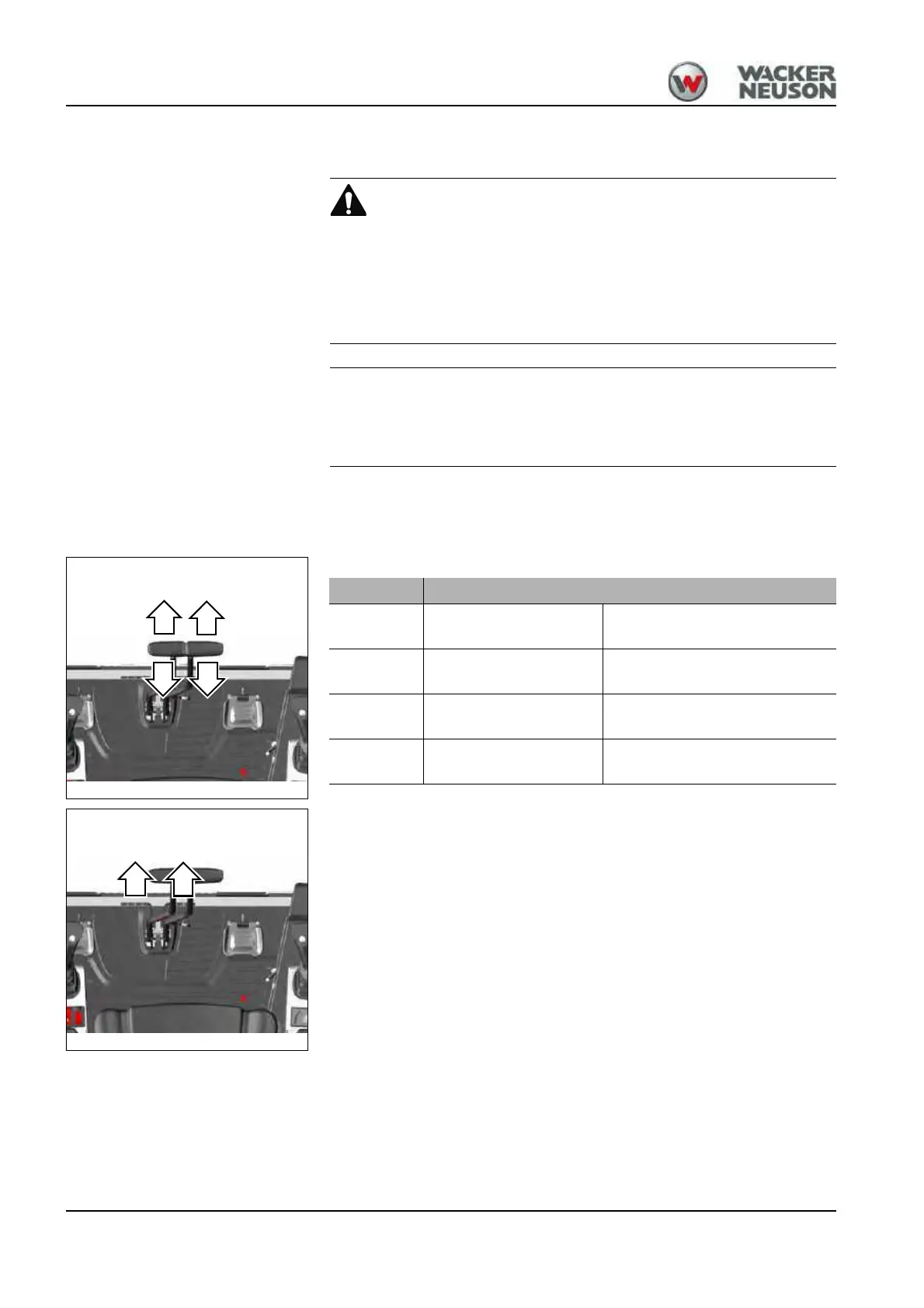

Travel levers
Accident hazard due to incorrect machine operation! The machine
moves in the opposite direction if the upper carriage is rotated by
180° and the travel levers are actuated.
Incorrect machine operation can cause serious injuries.
► Slowly and carefully actuate the control levers.
In order to avoid excessive track abrasion:
► Ensure that both tracks move as you change direction.
The stabilizer blade side is the front side (main traveling direction).
The travel movements of the machine are controlled with the travel levers.
The travel speed depends on the position of travel levers.
The travel pedals may also be used for traveling short distances forward.
Position Function
1
2
Move forward
Move forward
Machine moves forward
3
4
Move backward
Move backward
Machine moves backward
3
2
Move backward
Move forward
Machine turns to the left
1
4
Move forward
Move backward
Machine turns to the right
