5-32 OM EZ17 us 1.0 * ez17b510.fm
5
Hydraulic Easy Lock quickhitch (option)
Before putting this feature into operation, specific training must be
performed by authorized technical personnel and must be understood
by the operator.
For safety reasons, the quickhitch must be operated with two control
elements. This avoids opening the quickhitch unintentionally during
work operation.
For system-specific reasons, the hydraulic quickhitch opens and
closes with any function.
For safety reasons, only use the function “Raise stabilizer blade” to
open or close.
There must be no dirt on the claws before hitching.
For more information, see Easy Lock/Powertilt with Easy Lock
Operator’s Manual.
WARNING
Crushing hazard when picking up attachments!
If an attachment is not locked correctly, it can come off and cause serious
injuries or death.
Ensure that no one is in the danger zone.
Do not use a damaged attachment.
After hitching the attachment or before starting work, ensure that the
lock is correctly connected with the mount.
The check pin K must be fully retracted. Otherwise repeat the lock
cycle until check pin K is retracted.
Ensure correct locking with a short and rapid succession of stick and
bucket movements as close as possible to the ground.
Picking up an attachment
1. Unlock and press switch 40.
The buzzer sounds.
The hydraulic quickhitch is enabled and can be operated.

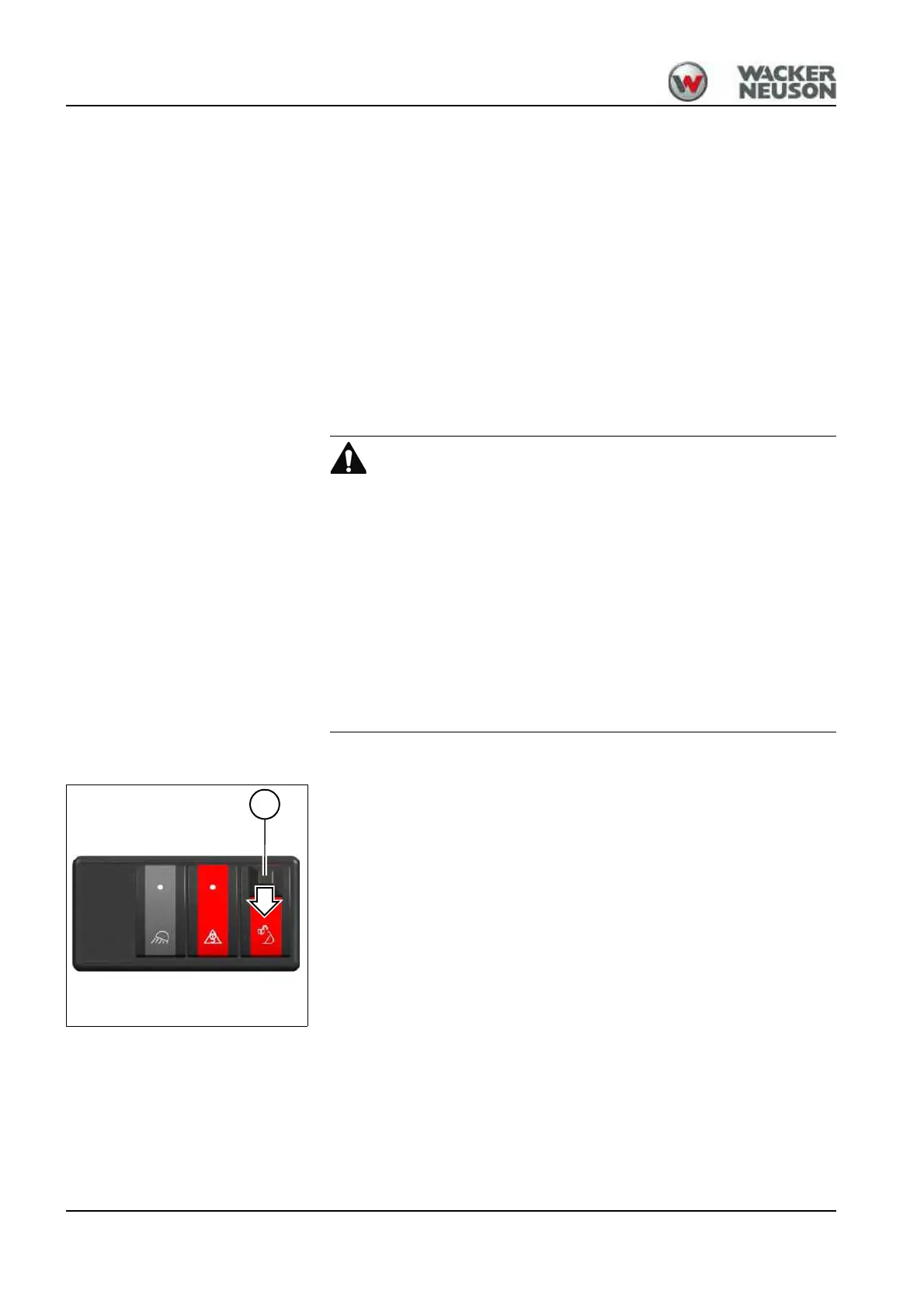

Fig. 120
40
