Upper carriage lock
NOTICE
Damage to the pin or travel gear.
► Do not rotate the upper carriage if it is in the locked position.
The lock blocks the upper carriage during transport.
Unlocking the upper carriage
• Align the upper carriage with the travel gear.
• Raise pin 18 and hitch it in the lock.
Locking the upper carriage
• Align the upper carriage and the travel gear correctly.
• Raise pin 18 and put it in the required position.
- The upper carriage and the travel gear are connected by means of
pin 18.

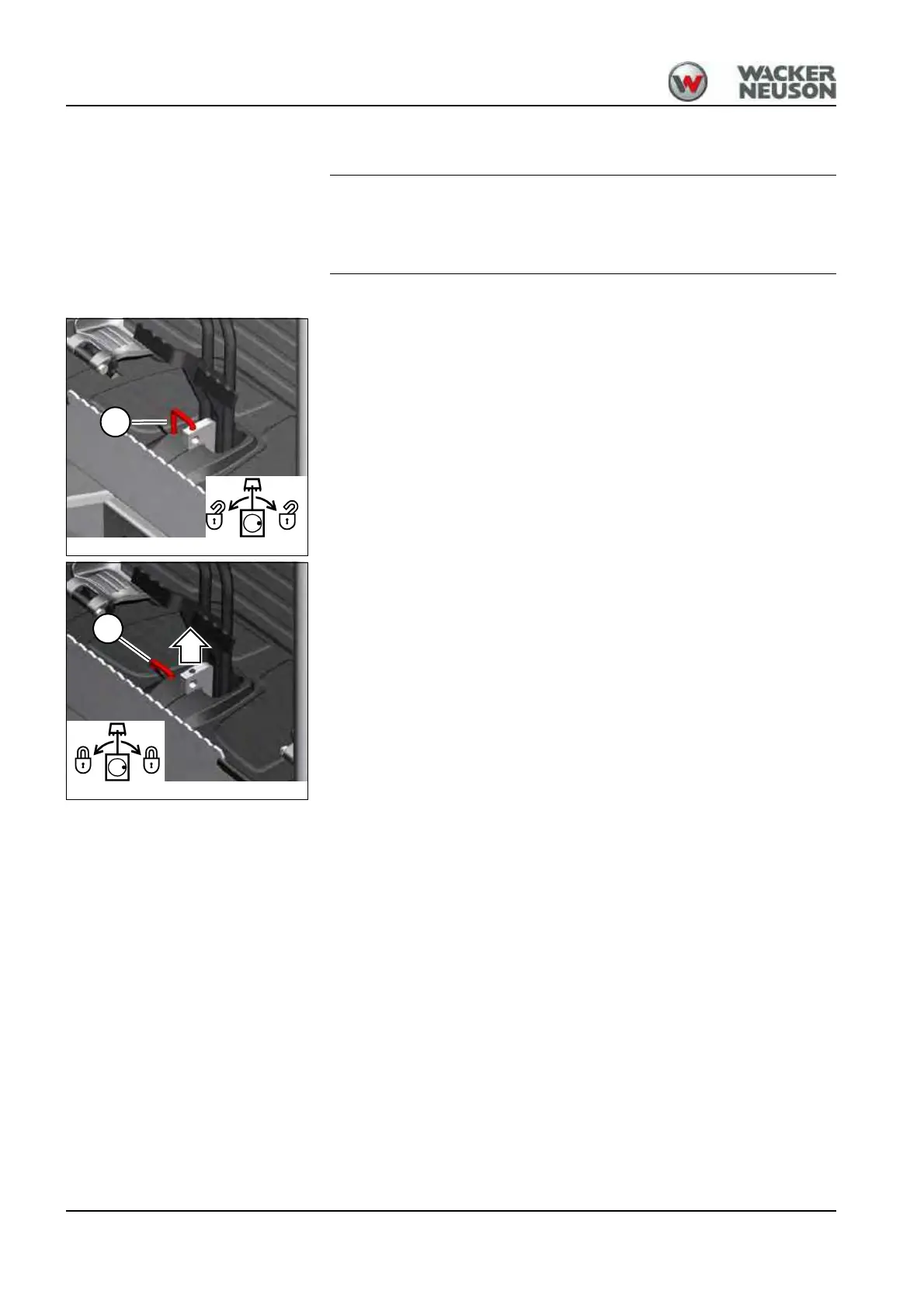

Fig. 161
18
Fig. 162
18
