OM EZ17 us 1.0 * ez17b510.fm 5-17
5
ISO/SAE controls (option)
WARNING
Accident hazard due to modified control lever operation!
Modified controls can cause incorrect operation, and serious injuries or
death.
Ensure that you know which control mode has been selected before
starting work.
Always secure the wing nut on the changeover lever of the directional
valve.
Do not operate the machine with a malfunctioning wing nut. Contact a
Wacker Neuson service center and replace the malfunctioning wing
nut.
The changeover valve is located at the left under the seat.
The changeover valve can be switched between Operating Pattern A (ISO
controls) and Operating Pattern B (SAE controls).
The function label for the controls is affixed on the roof window.

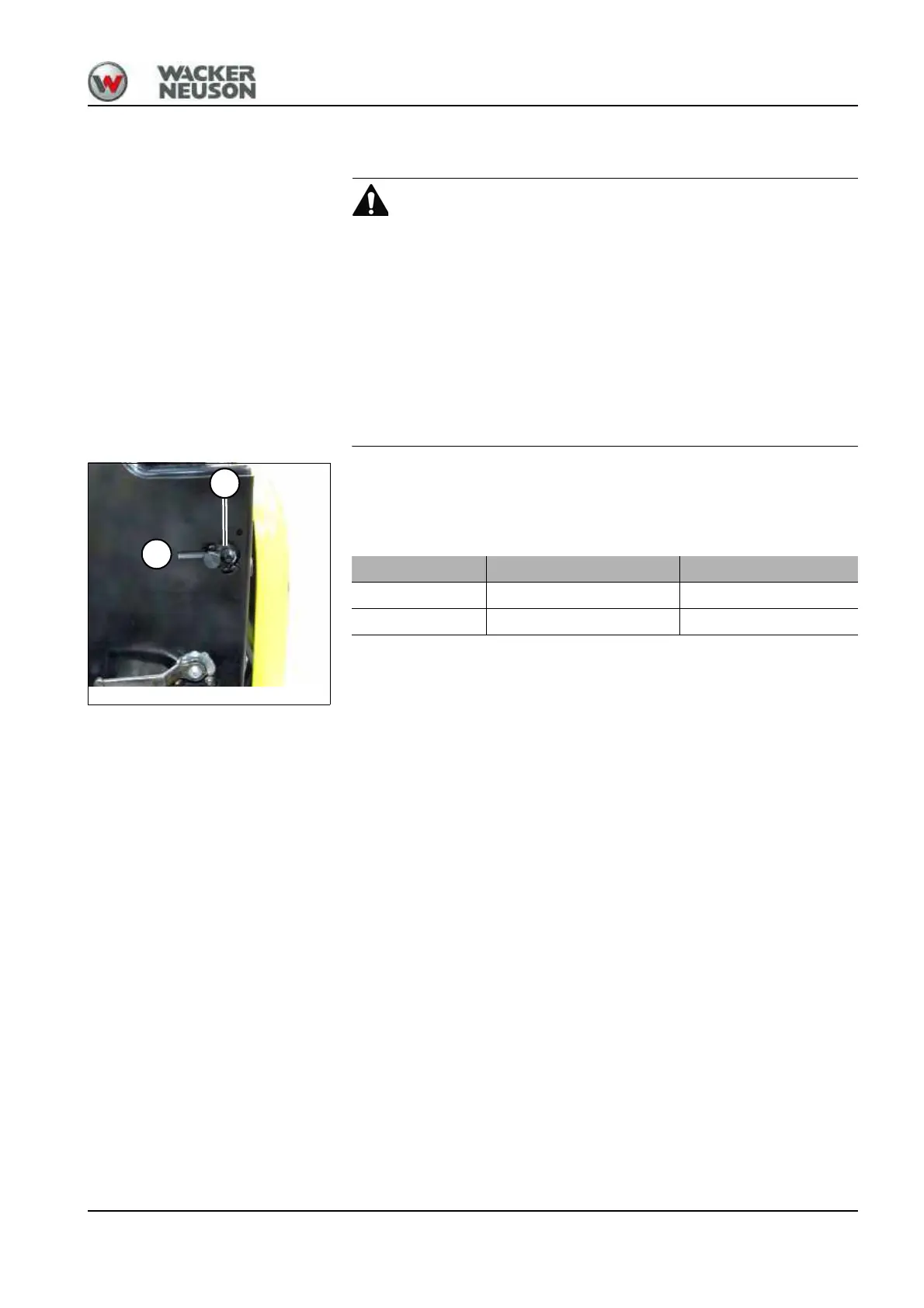

Fig. 96
A
B
Wiring diagram Controls
A ISO controls Operating Pattern A
B SAE controls Operating Pattern B
