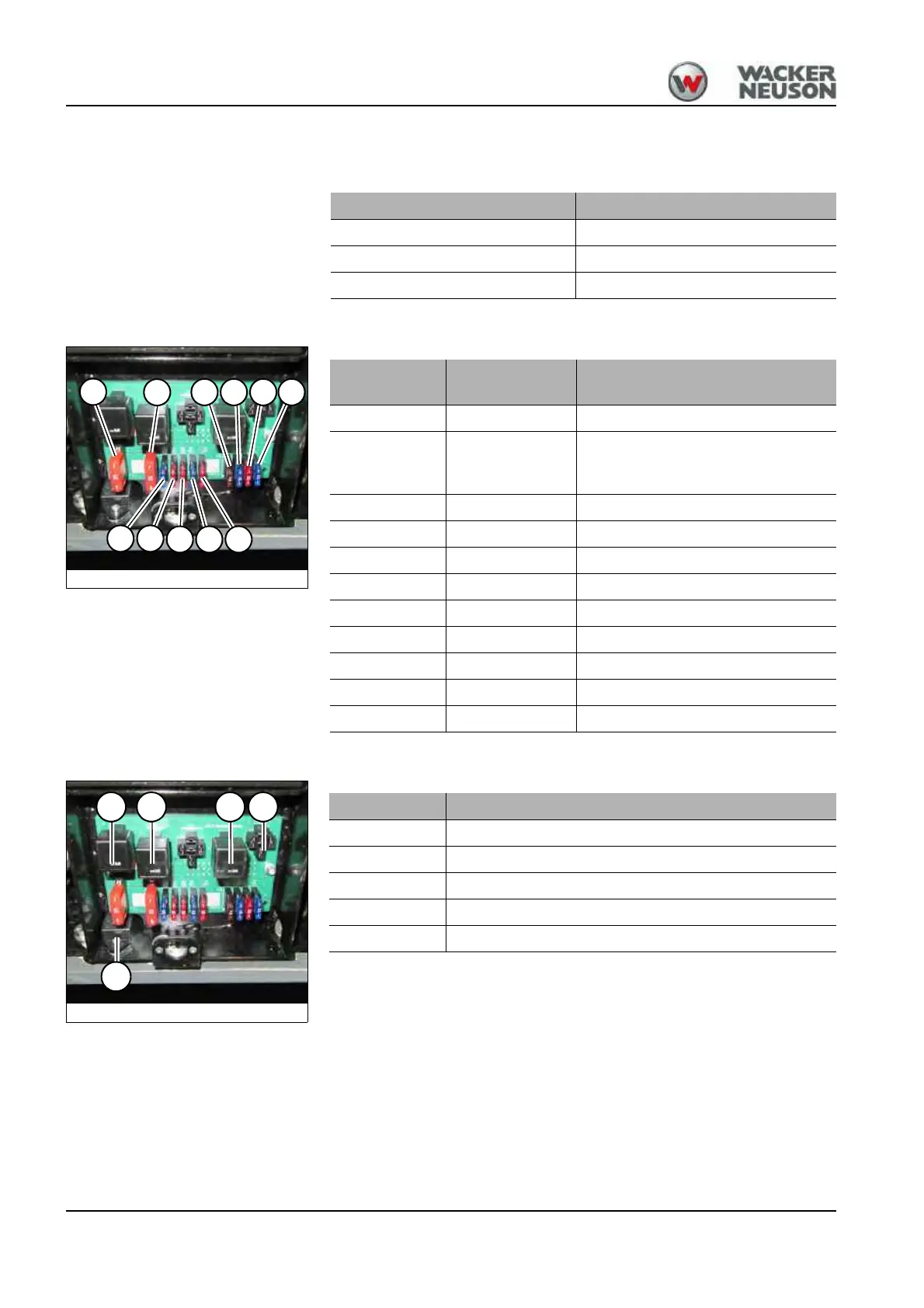

9.8 Electrical system
Electrical components
Fuses
The fuses are located behind the cover, under the seat.
Relays
The fuses are located behind the cover, under the seat
EZ17
Alternator 12 V 55 A
Starter 12 V 1.5 hp (1.1 ) kW
Battery 12 V 30 Ah
Fig. 222
F2
F1
F4F3 F7 F8
F5
F10
F9F6
F11
Fuses
Rated current
(A)
EZ17
F1 50 A Main fuse
F2 50 A
Main fuse, air-pressure sensor/
output adaptation (Yanmar
3TNV80F-SSNS1)
F3 7.5 A Display, cutoff solenoid
F4 15 A Valves, horn
F5 10 A Proportional controls
F6 10 A Travel signal, overload
F7 10 A Boom, cab working lights
F8 15 A Cab working lights
F9 15 A No function
F10 15 A Socket
F11 10 A No function
Fig. 223
K7
K8
K9 K58 K17
Relays EZ17
K7 Starting relay
K8 Cutoff solenoid time lag relay
K9 Cutoff solenoid (pull relay)
K17 Hydraulic quickhitch
K58 High speed (2nd travel speed)
