Additional control circuits
3rd control circuit – AUX II (option)
Turn the rotary switch on the left-hand control lever base to the required
position.
Operating the additional control circuit
Oil flow to left-hand line:
Push slide switch 22 on the left-hand control lever to the left.
Oil flow to right-hand line:
Push slide switch 22 on the left-hand control lever to the right.

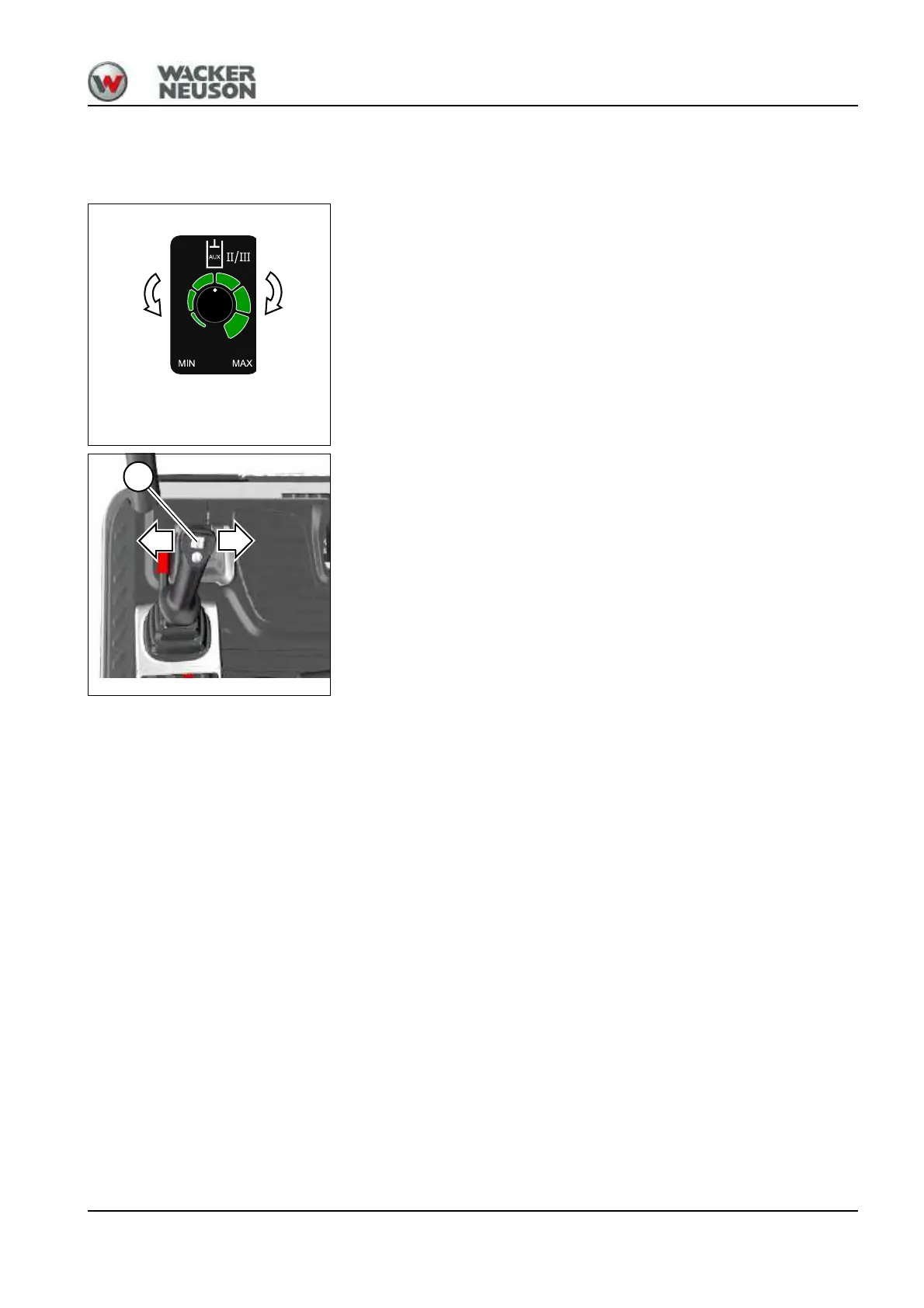

Fig. 115
Fig. 116
22
