5-48
OM EZ17 us 1.0 * ez17b5
10.fm
5
Switching on the safe load indicato
r
The safe load indicator switch is lo
cated on th
e left-hand contro
l lever
base.
1.
Press switch
39
on the instrument panel down.
➥
Indicator light
31
in the display element is us
ed for monitor
ing. As soon
as the admissible values are exceeded, ind
icator light
31
illuminates
and an acoustic signal sounds.
Switching off the safe load indicator
1.
Press switch
39
on the instrument panel forward.

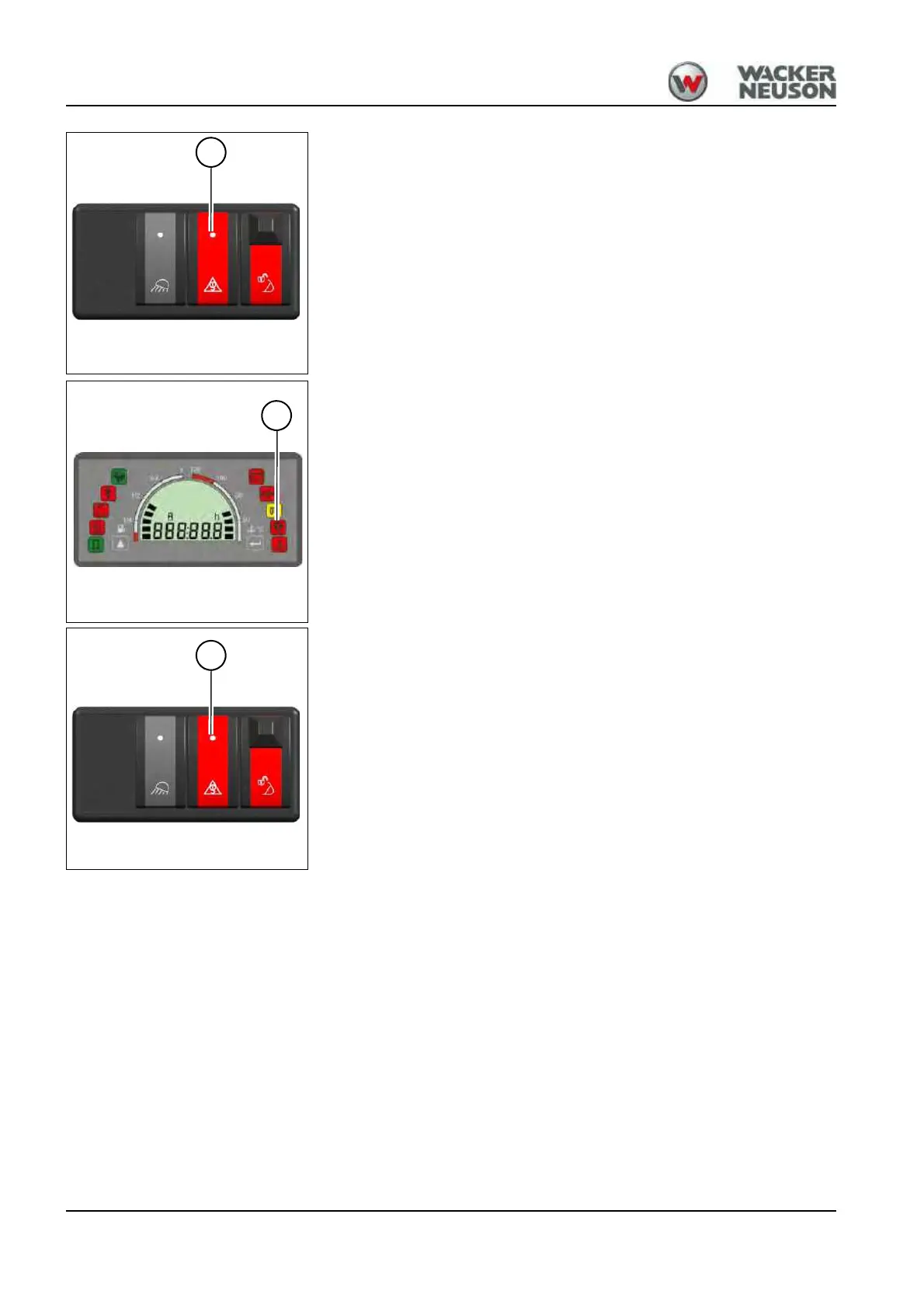

Fig. 152
39
Fig. 153
31
Fig. 154
39
129
131
