Closing:
1. Press rod B upward and hold it in the raised position briefly.
2. Turn the engine cover inward and close it.
Locking and unlocking:
The engine cover is locked with the starting key.
Turn the starting key in lock A to the right R.
➥ Engine cover locked.
Turn the starting key in lock A to the left L.
➥ Engine cover unlocked.
Right-hand cover
Opening:
1. Stop and park the machine. Stop the engine. See “Preparing
lubrication”.
2. Unscrew screws A.
3. Unhitch shackles B and remove the side cover.
Closing:
Lock in the reverse order.

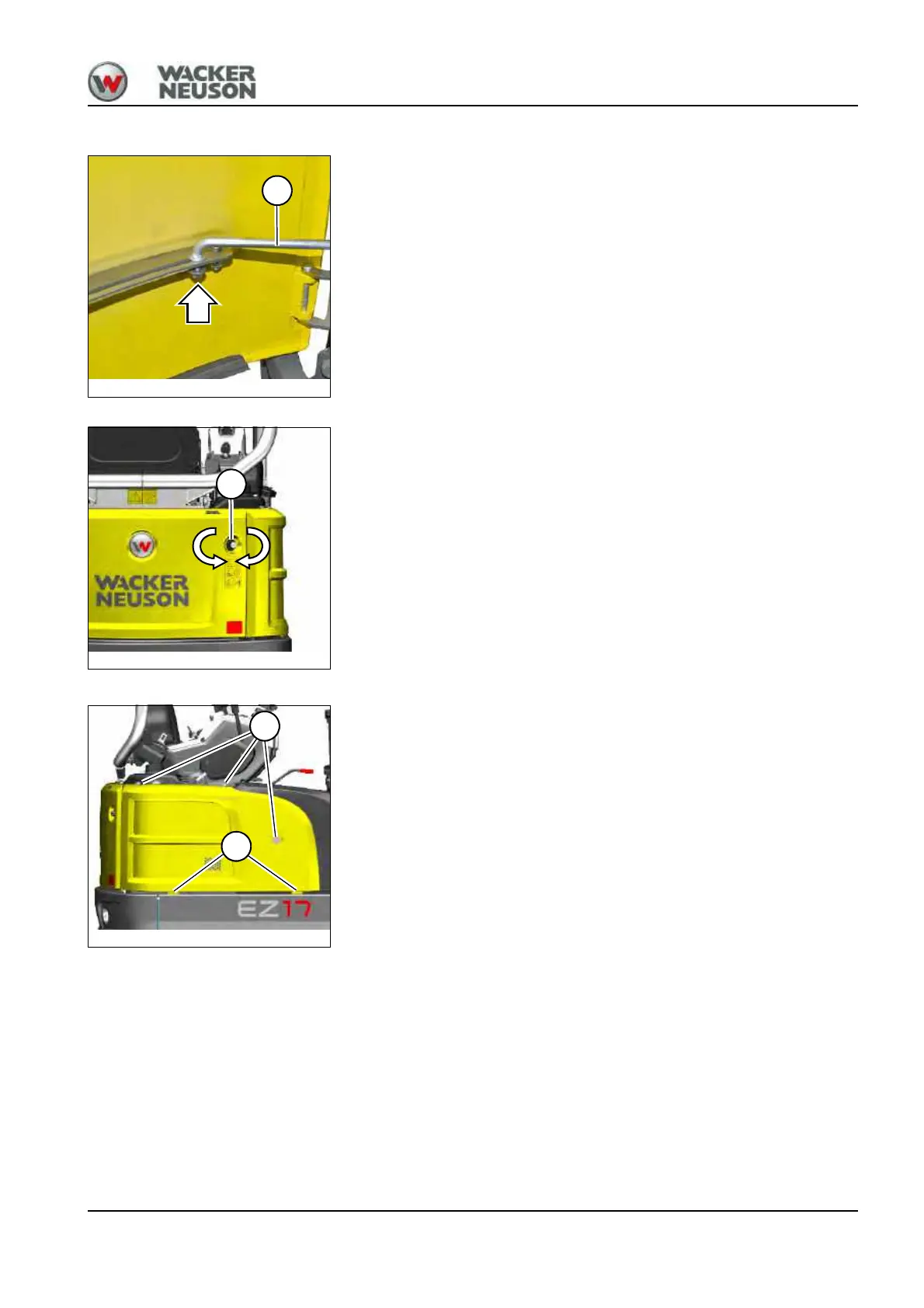

Fig. 171
