7-16
OM EZ17 us 1.0
* ez17w700.fm
7

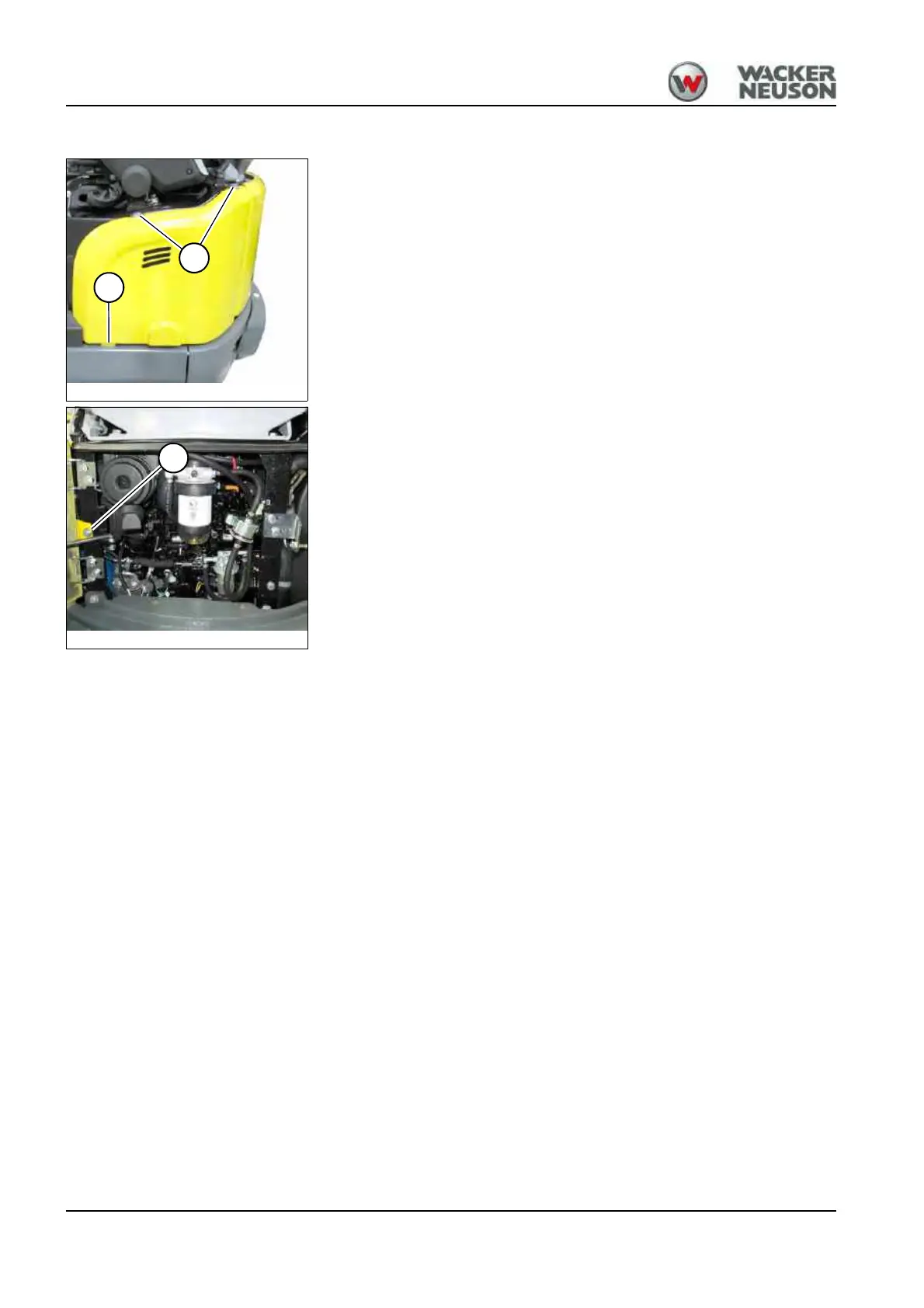

Lef
t-hand cover
Opening:
1.
Stop and park the machine. Stop the engine. Se
e “Preparing
lubrication”.
2.
Unscrew screws
A
.
3.
Open the engine co
ver.
4.
Loosen screw
B
.
5.
Unhitch shackle
C
and remove the side cover.
Closing:
Lock in the reverse order.
A
C
Fig. 174
B
Fig. 175
161
163
