OM EZ17 us 1.0 * ez17b510.fm 5-13
5

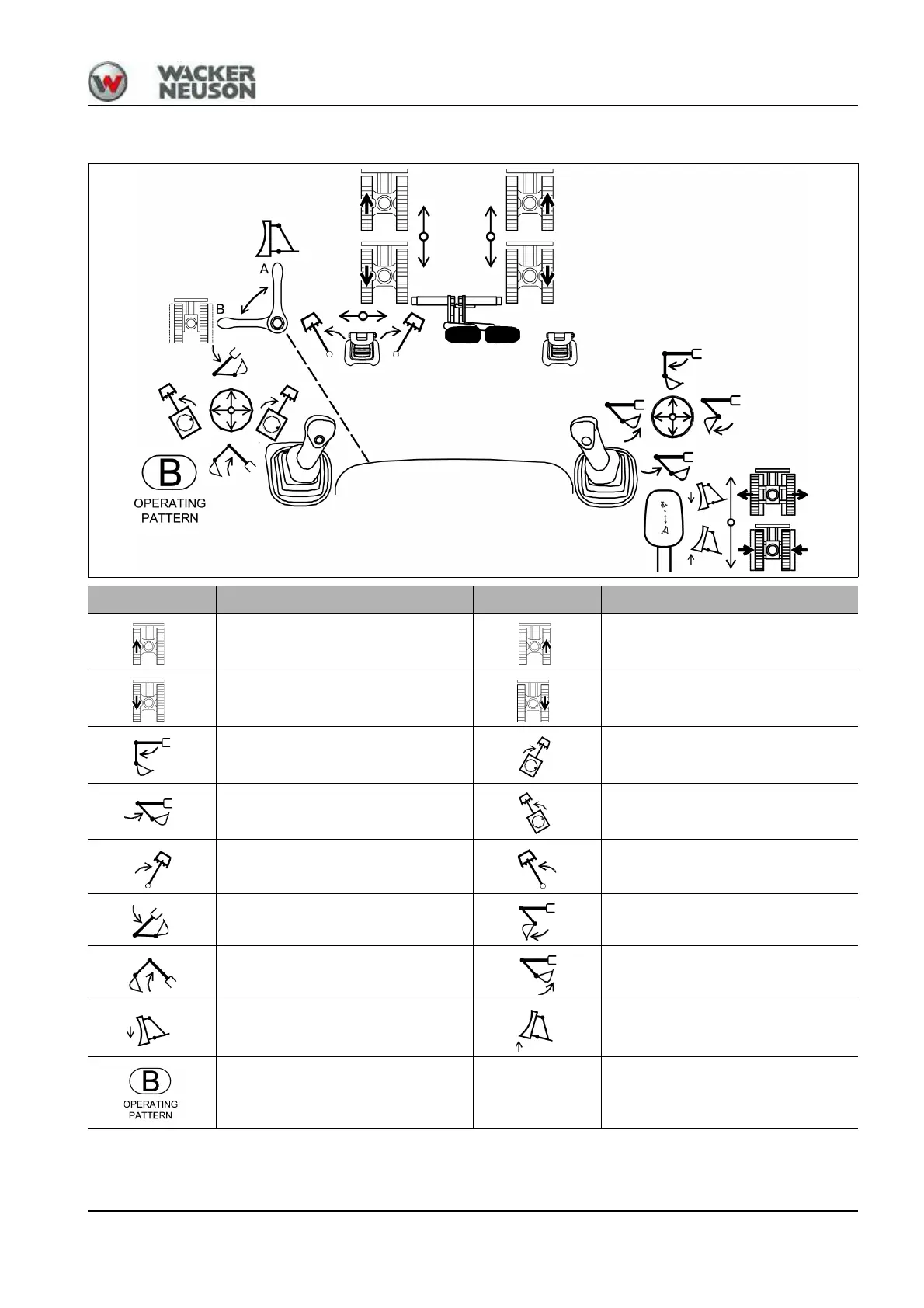

Overview of pedals and control levers (Operating Pattern B)
Symbol Designation Symbol Designation
Left-hand track (forward) Right-hand track (forward)
Left-hand track (reverse) Right-hand track (reverse)
Extend stick Swivel upper carriage to the right
Retract stick Swivel upper carriage to the left
Swivel boom to the right Swivel boom to the left
Lower boom Dump bucket
Raise boom Curl bucket
Lower stabilizer blade Raise stabilizer blade
SAE controls
