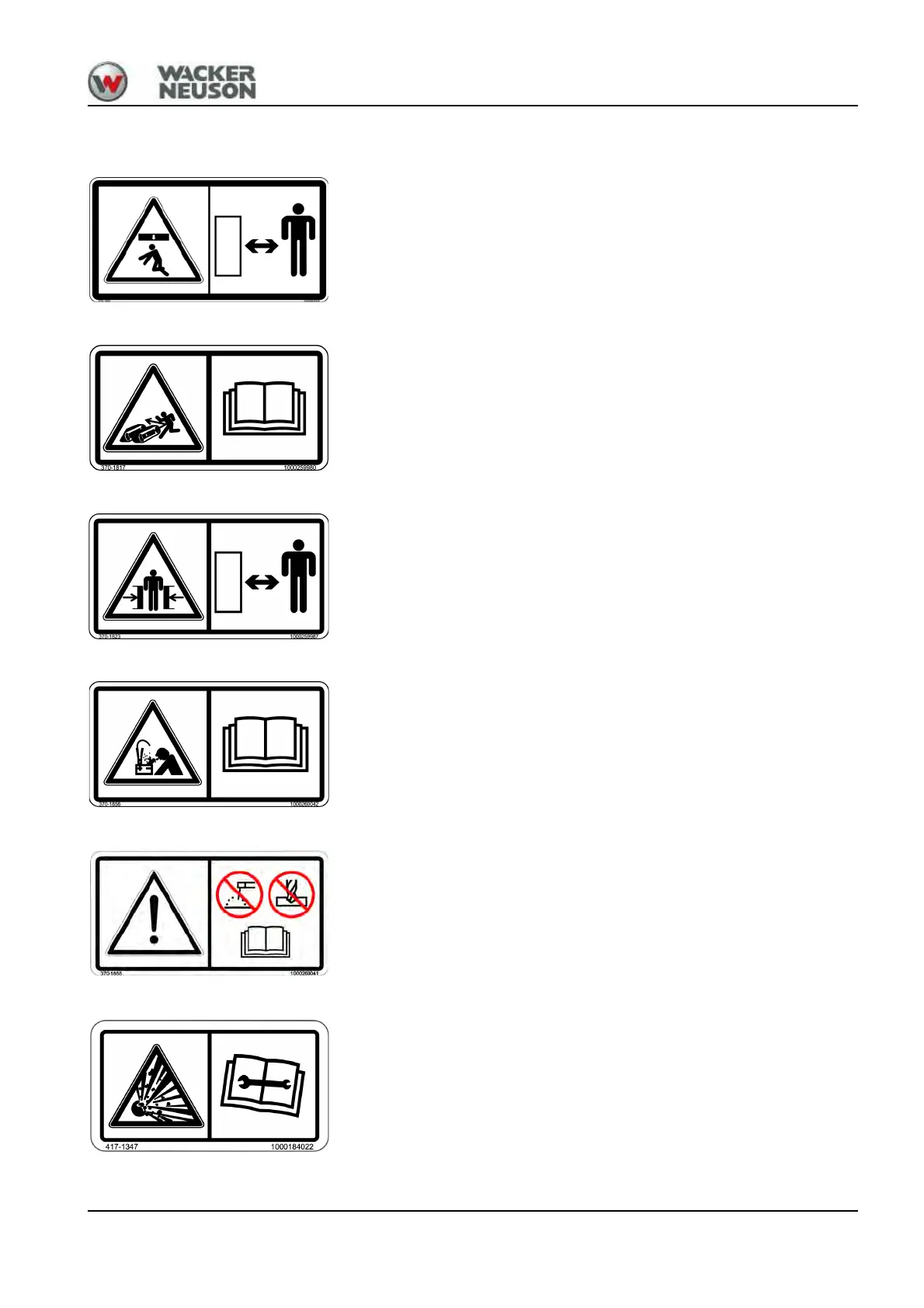

The following states signs and symbols that do not contain explanatory
text and that are not explained in the following chapters.
Meaning
Crushing hazard.
Stay clear of suspended loads or of the danger zone of the machine
during operation.
Position
On the boom on the left and right.
Meaning
Potential high pressure grease discharge from the track tension
adjustment fitting.
Read the Operator’s Manual before working on the track tensioner.
Position
On the travel gear near the lubrication system.
Meaning
Crushing hazard.
Stay clear of the machine’s danger zone during operation.
Position
At the front of the chassis near the swiveling console.
Meaning
Explosion hazard due to wrong connection of battery jumper cables.
Position
Inside the battery cover.
Meaning
Modifications to the structure (welding, driling, for example), retrofitting
and incorrect repairs affect the protective effect of the canopy and can
cause serious injuries and even death.
Position
A the rear of the seat.
Meaning
Accumulator is under high pressure. Maintenance or repair work may only
be performed by a Wacker Neuson service center.
Position
Below the floor mat on the left.
Fig. 12
Fig. 13
Fig. 14
Fig. 15
Fig. 16
Fig. 17
