Edge [ii] Controller Operation Manual
SECTION 6 – ADVANCED SETUP
OMM-139_E • 8/25/2020 Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST Page 114 of 196
Restore Settings After Firmware Update
If the spot check in the previous section failed, you should restore the setup and its parameters
to their original state prior to the update.
1. Go to: Main Menu → Advanced Setup → Unit → Settings Transfer.

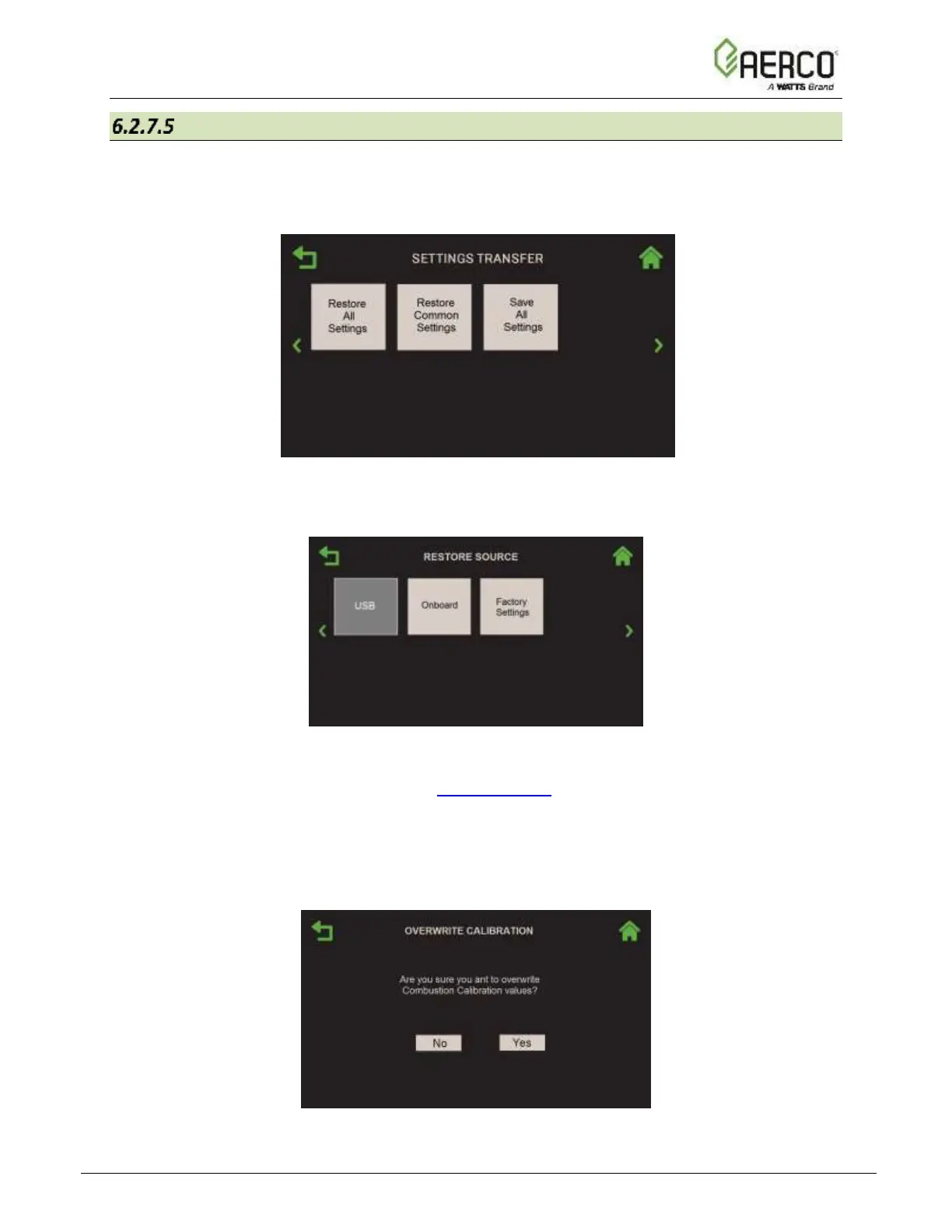

Figure 6.2.7.5-1: Settings Transfer Screen
2. Choose Restore All Settings; the Restore Source screen appears.
Figure 6.2.7.5-2: Restore Source Screens
3. Choose where you saved the setup (in Section 6.2.7.3), then press either:
• USB if the same USB device is still plugged in.
• Onboard If the setup was saved to the Controller’s onboard memory.
4. The Overwrite Calibration screen now appears. Press Yes to overwrite the existing
combustion calibration values or press No to retain the existing values.
Figure 6.2.7.5-3: Load Settings Screen
