Edge [ii] Controller Operation Manual
SECTION 9 – EDGE CONTROLLER VIEWS
OMM-139_E • 8/25/2020 Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST Page 185 of 196
SECTION 9: EDGE CONTROLLER VIEWS

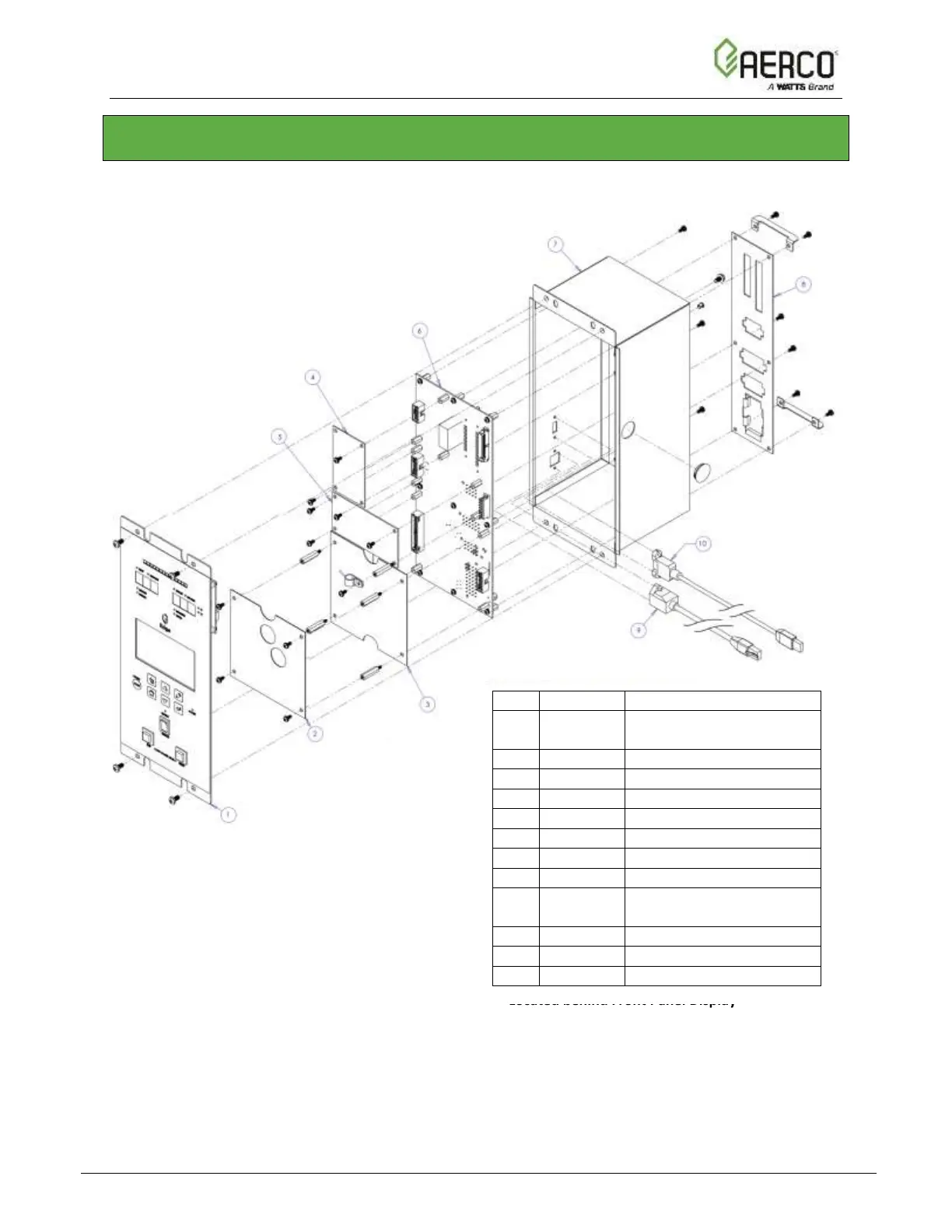

Figure 9-1 – Edge [ii] Controller (P/N 69344-1) - Exploded View
*Located behind Front Panel Display
Item
Part #
Description
1
69353-1
Platinum Edge [ii] Front
Panel and MCB Kit
2
124960
Fish Paper, IGST
3
124361-1
IGST Board
4
124363-1
Low Water Cut Off Board
5
124362-1
Power Supply
6
64139-1
Connector Board Assembly
7
37142
Control Box Enclosure
8
38045
Connector Plate Cover
9
62085
Panel Mount Ethernet
Extension
10
62084
Panel Mount USB Cable
11
64113-1
*Display Board Kit
12
64131-1
*Interface Board Kit
