Edge [ii] Controller Operation Manual
SECTION 2: EZ SETUP
OMM-139_E • 8/25/2020 Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST Page 47 of 196

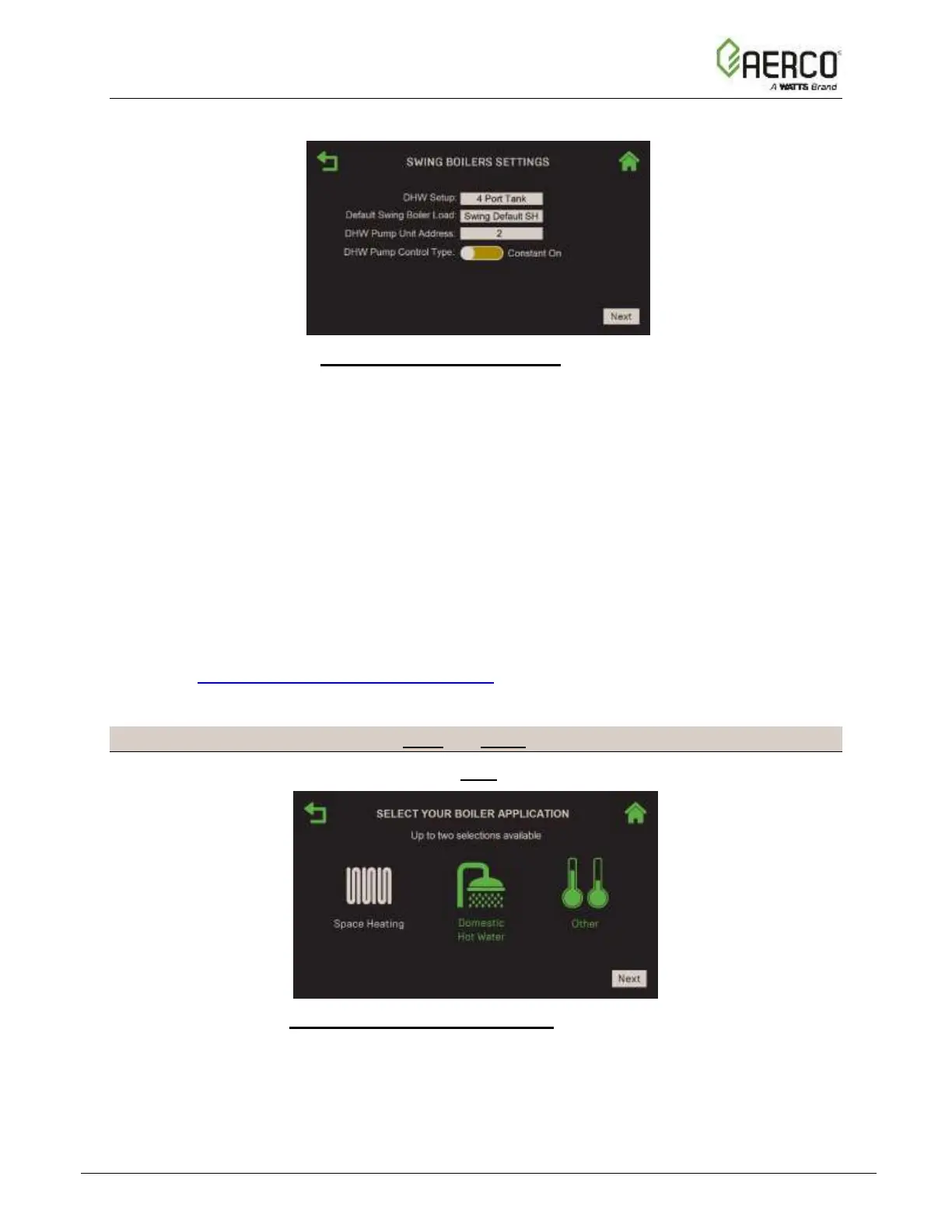

11. The Swing Boiler Settings screen appears. Configure the following parameters:
Figure 2.3.2.2.1-14: BST Manager – SH & DHW: EZ Setup Complete Screen
• DHW Setup: Choose one:
o 2 Port Tank
o 4 Port Tank
o Indirect Tank
• Default Swing Boiler Load: Choose one of the following:
o Swing Default SH
o Swing Default DHW
• DHW Pump Unit Address: Enter the address of the unit containing the DHW
Pump. (Range: 1 to 16)
• DHW Pump Control Type: Choose either Constant On or Controlled.
12. Once all DHW parameters have been configured, the Select BAS Mode screen appears.
Skip to Section 2.4: Completing the Installation for instructions.
2.3.2.2.2 EZ Setup: BST Manager – DHW and Other Applications
Complete these instructions only if you chose both DHW and Other at the end of Section 2.3.2.
Figure 2.3.2.2.2-1: BST Manager – DHW & Other: Select Your Boiler Application
