Edge [ii] Controller Operation Manual
SECTION 4: DIAGNOSTICS
OMM-139_E • 8/25/2020 Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST Page 88 of 196
4.7 Input/Output Summary
The Input/Output Summary screen is a read-only, multi-page screen that displays the current
status of all Inputs and Outputs, such as temperature sensors, pressure sensors, flow sensor,
O
2
sensor, Analog Inputs and Analog Outputs. Items that are not part of the configuration (for
example, Feed Forward), are displayed as --- (blank).
1. Go to: Main Menu → Diagnostics → Input/Output Summary.

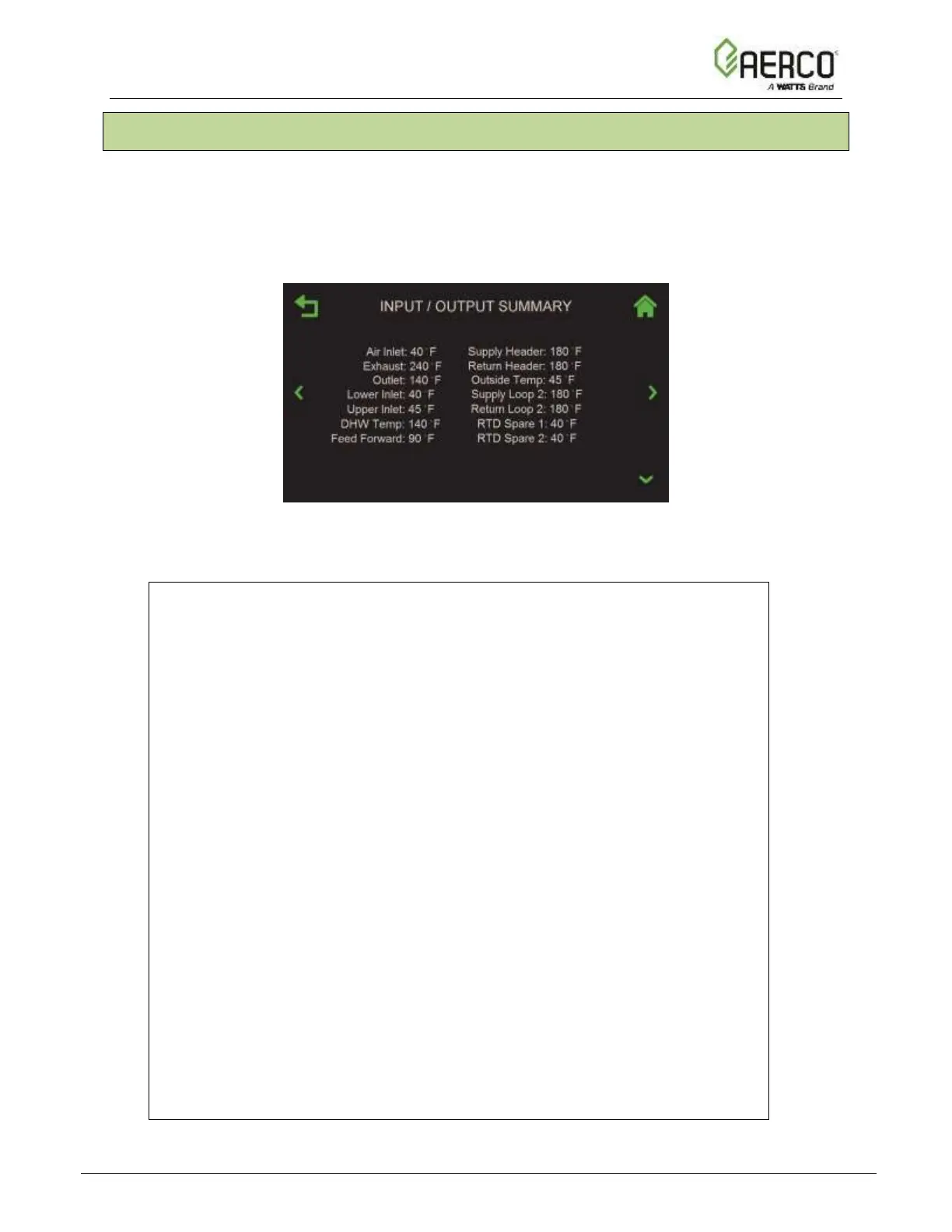

Figure 4.7: Input/Output: Input/Output Summary Screen (First of 3)
2. The following is an example of the data in the Input/Output Summary screen.
Air Inlet:
40°F
Supply Header:
180°F
Exhaust:
240°F
Return Header:
180°F
Outlet:
140°F
Outside Temp:
40°F
Lower Inlet:
40°F
Supply Loop 2:
180°F
Upper Inlet:
40°F
Return Loop 2:
180°F
DHW Temp:
140°F
RTD Spare 1:
40°F
Feed Forward:
90°F
RTD Spare 2:
40°F
O
2
:
3%
Spare Aout2:
19
Spare Aout1:
5.5
Spare Aout3:
5.50V
Cascade Valve:
5.5
Blower:
2.00 V
BLR V.S. Pump:
5.5
DHW V.S. Pump:
5.5V
Flow:
0.0 gpm
CO/Analog In:
5.5V
Air Pump:
1.05 V
Cas Vlv Fdbk:
5.5V
Remote Ain:
5.5
Spare Ain1:
5.5V
Spare Ain2:
5.5
Spare Ain3:
5.5V
Blower Relay:
Open
Swing Valve 1 Relay:
Closed
Ignition Relay:
Open
Backup Relay:
Closed
Pump Relay:
Open
DHW Relay:
Closed
Aux Relay:
Open
V2/Spare 1 Relay:
Closed
Fault Relay:
Open
Spare 2 Relay:
Closed
Blower
2.00 V
Blower
0 rpm
High Gas Pressure:
13.5 in. W.C.
Low Gas Pressure:
2.2 in. W.C.
Draft Pressure:
-0.81 in. W.C.
Spare Pressure:
28.1 in. W.C.
