Watts AERCO Edge [ii] User Manual

Edge [ii] Controller Operation Manual
SECTION 1: INTRODUCTION
OMM-139_E • 8/25/2020 Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST Page 13 of 196

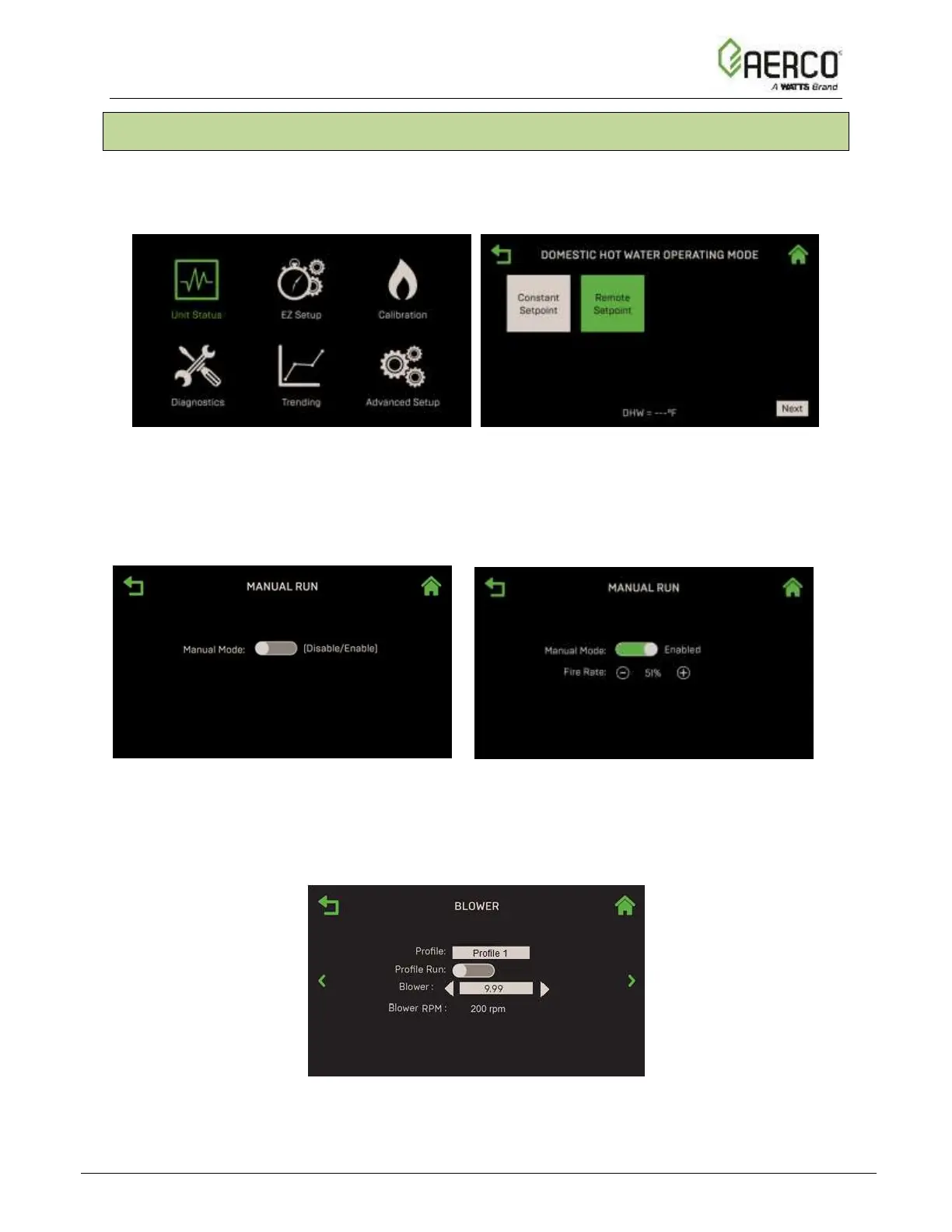

1.9 Selections
When you press on an item, it turns green; pressing the button a second time de-selects that
option. On some screens, this opens the screen you chose. On other screens, the screen
remains until you press Next or Proceed.
Figure 1.9-1: Selected Item Indication – Color Change
Some controls that have only two options have a sliding “toggle” control that indicates the
current selection. In the example below on the left, Manual Mode is Disabled. To enable it,
simply press on the control; it switches to the opposite option, the background color changes,
and the label indicates the current state, as shown on the right-hand image.
Manual Mode Disabled Manual Mode Enabled
Figure 1.9-2: Toggle Controls
Some screens include a combination of “read only” and “user-selectable” parameters. Read-
Only parameters appear as plain text on a back background.
Figure 1.9-3: List Controls
