4.1 Manual Run
Most diagnostic test procedure require the unit to be in Manual Mode. Putting the Controller in
Manual Mode does the following:
• Initially reduces the unit’s Fire Rate to zero.
• Allows the system to display certain diagnostic options that are otherwise unavailable.
• Suppresses event transmissions to external systems.
• Lights the red Manual LED on the Controller’s front face.
• Flags all events in the internal log as related to Manual Mode.
To put the unit in Manual Mode:
1. Go to: Main Menu → Diagnostics → Manual Run.

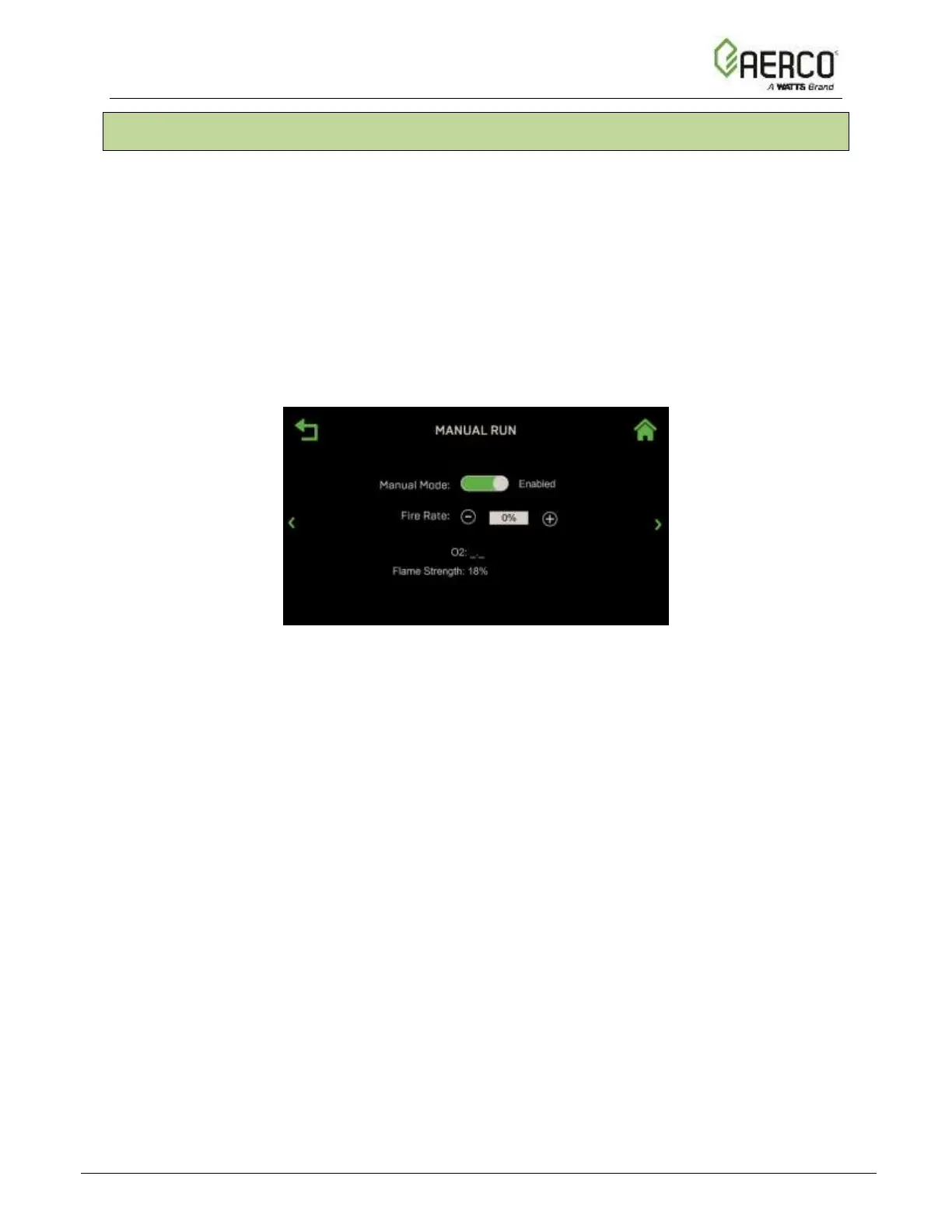

Figure 4.1: Diagnostics: Manual Run Screen – Manual Mode Enabled
2. Enable the Manual Mode toggle. The red Manual LED lights on the Controller’s front face
turns on, the unit shuts down (if not already) and stays in Manual Mode until it is disabled
from this screen, or until the session times-out.
3. When Manual Mode is enabled, the Fire Rate control appears. You can use these controls
to manually fire the unit in 1% increments using the + and – controls or press on the field
and manually enter a specific fire rate.
4. When you are done operating in Manual Mode, use the Manual Mode toggle to disable it.
All initiated/active diagnostic routines/processes will terminate, the Manual LED on the
Controller’s front face will go off, and the unit will resume normal operation.
